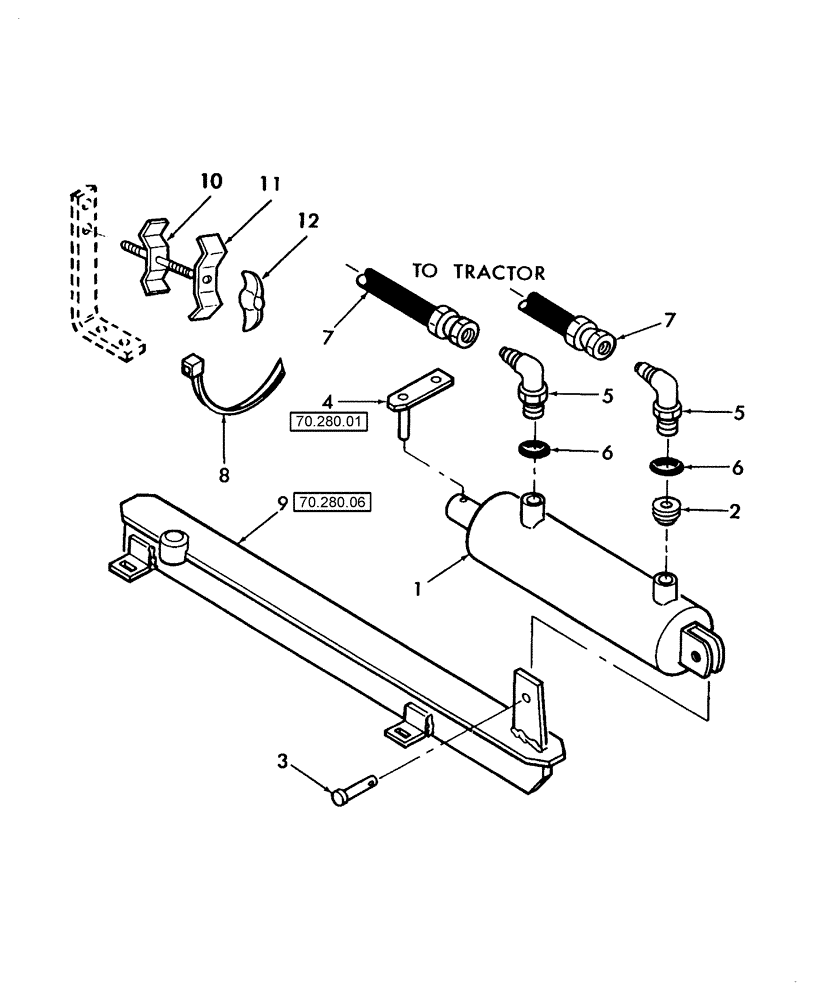

Запчасти Case IH BTX11 (70.280.13) - HYDRAULIC DIRECTION CONTROL (70) - EJECTION

1

86634424

CYLINDER ASSY.

Hydraulic, Directional Control, Serial Range: Refer-Fig.013(1)

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

Prior to P.I.N HBJ0003526

1шт.

1

87019621

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 152.4mm Stroke

Directional Control, Refer to Fig. 013(2)

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

P.I.N. HBJ0003526 & After

1шт.

2

705914

ORIFICE

1шт.

3

26282

PIN

1/2" x 1-1/2"

1шт.

4

86633928

PIN

1шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

825-1408

NUT,M8, Cl 8

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

9619437

FLEXIBLE HOSE,0.25" ID x 336.00", SAE 100R1

2шт.

87572

BUSHING

1/2" x 3/8"

2шт.

8

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

9

86633924

BRACKET

1шт.

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

8шт.

394818

COTTER PIN,M5 x 25

1шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

825-1410

NUT,M10, Cl 8

4шт.

10

86630098

CLAMP

Incl: Ref. 11 & 12

1шт.

11

207705

CLAMP,15.8mm ID

1шт.

12

PL

PROCURE LOCALLY

Nut, Wing

1шт.
