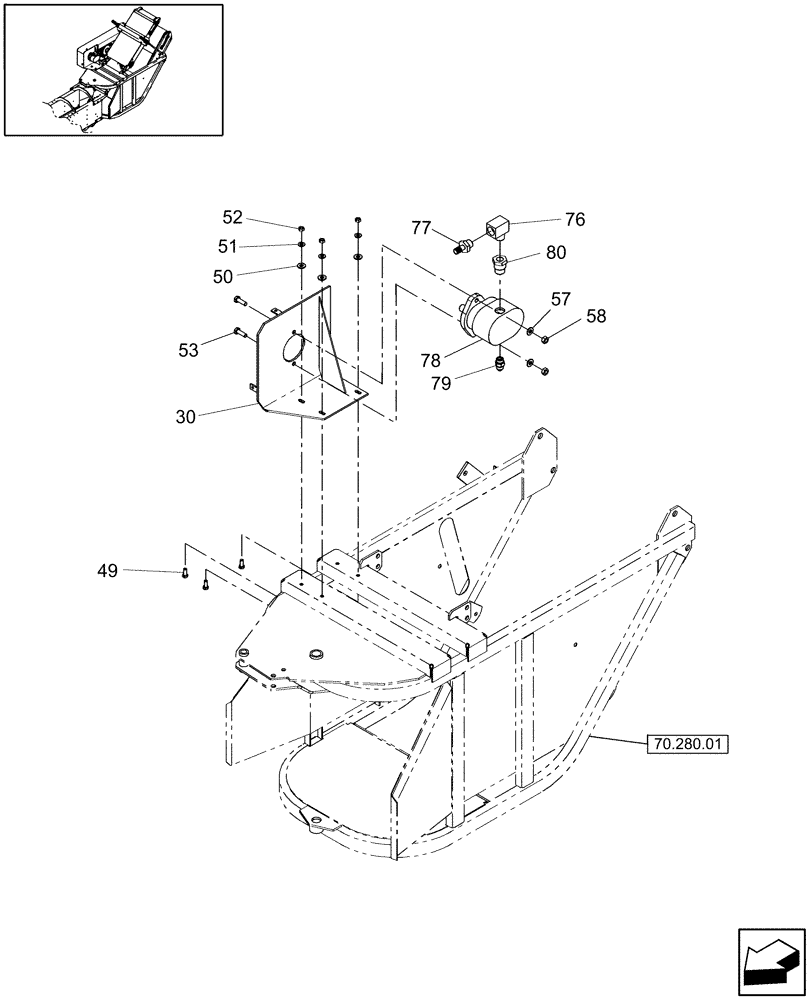

Запчасти Case IH BTX11 (70.280.12[2]) - HYDRAULIC MOTOR MOUNT (70) - EJECTION

30

86635679

BRACKET

1шт.

49

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

50

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

52

9706690

NUT,M8 x 1.25, Cl 8

6шт.

53

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

57

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

58

100016

NUT,M10 x 1.5, Cl 8

2шт.

76

88472

ELBOW,90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

77

176076

FITTING

1шт.

78

86553260

HYDRAULIC MOTOR

Incl 81

1шт.

79

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

80

248986

ADAPTER

1шт.

81

87042713

SEAL KIT

1шт.

Not Illustrated

1шт.
