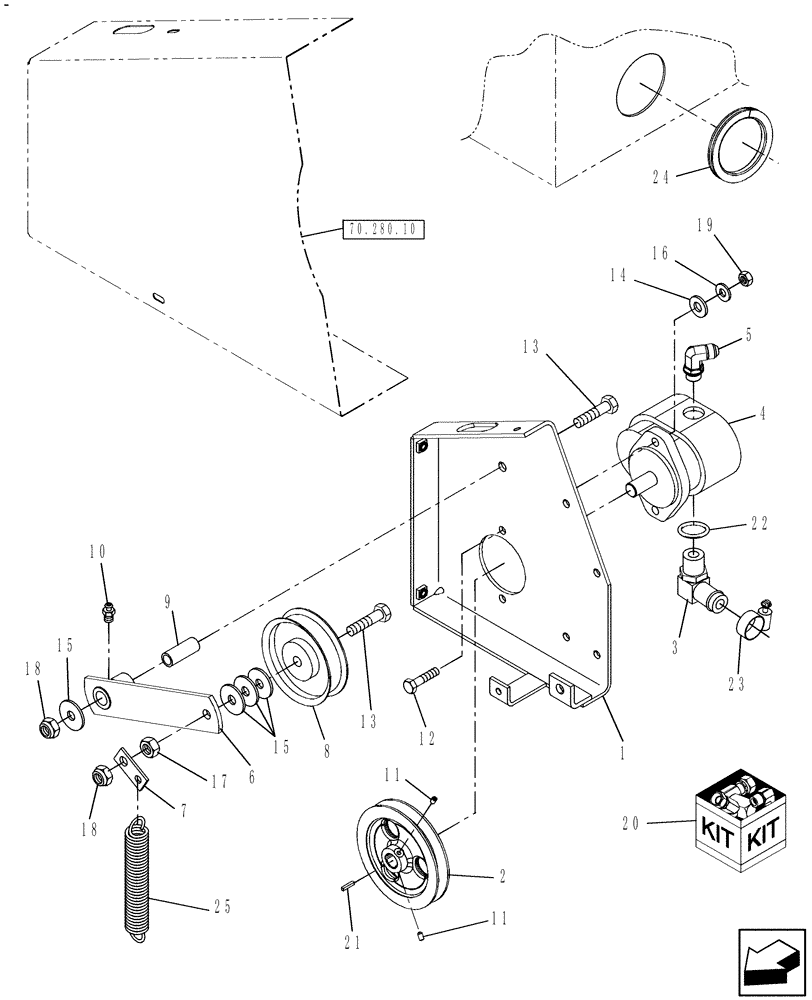

Запчасти Case IH BTX11 (70.280.12[1]) - HYDRAULIC PUMP, BELT TIGHENER & DRIVE PULLEY (70) - EJECTION

1

86635688

BRACKET

1шт.

2

9601420

SHEAVE

1шт.

3

858997

ELBOW

Includes: Ref. 22

1шт.

4

86553259

HYDRAULIC PUMP

Includes: Ref. 20 & 21

1шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

6

86836909

SUPPORT

1шт.

7

86628313

SUPPORT

1шт.

8

86636724

IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W

1шт.

9

9603079

SPACER

1шт.

10

87414

LUBE NIPPLE,1/4" - 28

1шт.

11

120242

SET SCREW,Hex Skt, M6 x 10mm, Cup Pt

2шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

13

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

14

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

17

9706685

NUT,M12 x 1.75, Cl 8

1шт.

18

100038

NUT,M12 x 1.75, Cl 8

2шт.

19

100016

NUT,M10 x 1.5, Cl 8

2шт.

20

86529016

SEAL KIT

1шт.

21

86604969

KEY

Sq. .03" x .97"

1шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

24

PL

PROCURE LOCALLY

Edging

1шт.

25

86640952

SPRING

1шт.
