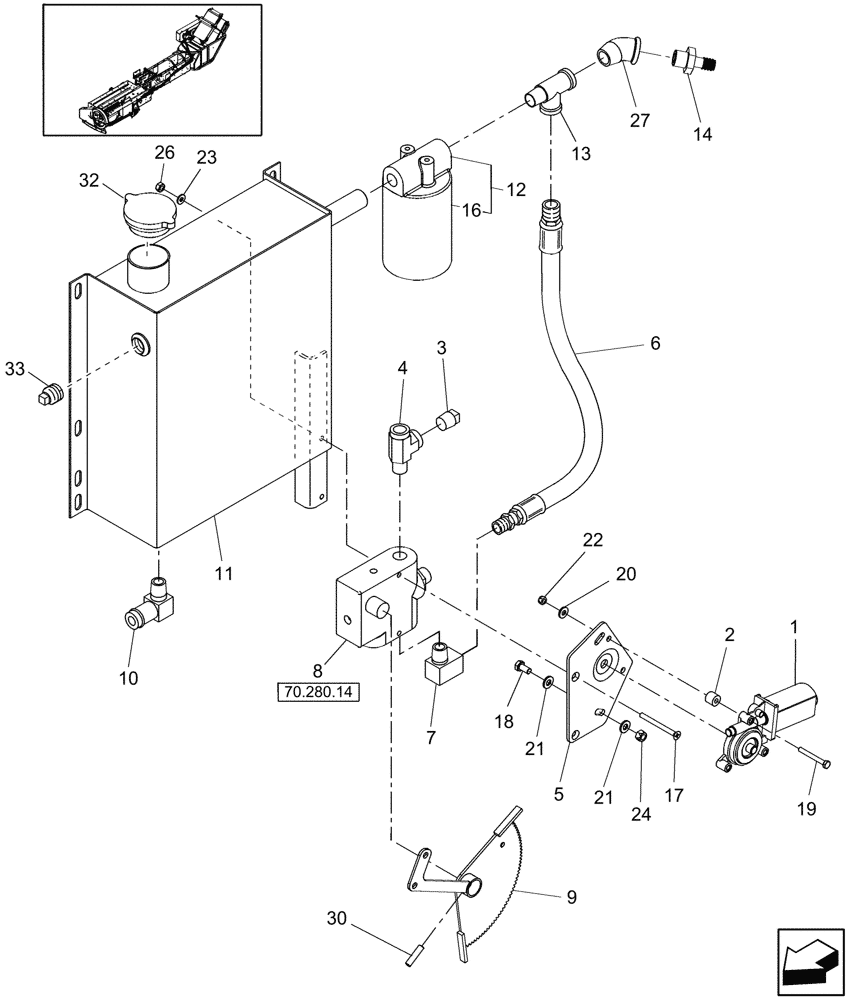

Запчасти Case IH BTX11 (70.280.11) - HYDRAULIC RESERVOIR (70) - EJECTION

1

84229517

ELECTRIC MOTOR

Speed Control, G & S 0NXQ.100.207, Start Serial: Y9N075520

1шт.

Verify Bale Thrower Serial Number & Manufacturer's Part Number on the Speed Control Motor Before Ordering.

1шт.

1

111787A2

MOTOR, ELECTRIC

Speed Control, Delco 16628796, Serial Range: 89502-Y9N075519

1шт.

When Replacement of 11787A2 Electric Speed Control Motor is Required, Order Either 117878A2 Or for Better Speed Control, Order 87725783 Electric Motor Replacement Kit.

1шт.

Verify Bale Thrower Serial Number & Manufacturer's Part Number on the Speed Control Motor Before Ordering.

1шт.

1

111787A2R

REMAN-ELECTRIC MOTOR

BTX11, Speed Control,DELCO 16628796, Serial Range: 89502-Y9N075519 (1/02-)

1шт.

1

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

1

788109

ELECTRIC MOTOR

Speed Control, Delco 5045739, Serial Range: -89501

1шт.

Verify Bale Thrower Serial Number & Manufacturer's Part Number on the Speed Control Motor Before Ordering.

1шт.

2

851597

SPACER

2шт.

3

84296

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.

4

617267

TEE,1/2"-14 Female x 1/2"-14 Male Run

1шт.

5

87681578

BRACKET

1шт.

6

9604652

HOSE,12.70 mm ID x 736.60 mm, SAE 100 R3

1шт.

7

283354

90 ELBOW,90 Degree, 1/2"-14 Female x 1/2"-14 Male

1шт.

8

847664

HYDRAULIC VALVE

1шт.

9

84134244

GEAR

1шт.

10

642388

FITTING,90 Degree, 1" Hose x 3/4" NPTF Beaded

1шт.

11

86635685

TANK

1шт.

12

87032584

FILTER ASSY

Includes: Ref. 16

1шт.

13

620775

TEE,3/4"-14 Female x 3/4"-14 Male Run

1шт.

14

176076

FITTING

1шт.

15

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

1шт.

16

80591689

HYDRAULIC OIL FILTER

1шт.

17

87625626

SCREW,1/4" - 20 x 2 3/4"

2шт.

18

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

19

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

20

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

24шт.

21

87362

WASHER,5/16" SAE

2шт.

22

353308

NUT,M6 x 1.0, Cl 8

2шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

27

64038

BEARING

2шт.

30

280323

GROOVED PIN,5/16" x 1 1/4", Type A

1шт.

31

87708240

WIRE HARNESS

Jumper

1/ARшт.

Used with 111787A2 Delco 16628796 Electric Motor or if Polarity Problems Exists.

1шт.

32

163361

CAP

1шт.

33

80781

PLUG,3/8" - 18 NPT

2шт.
