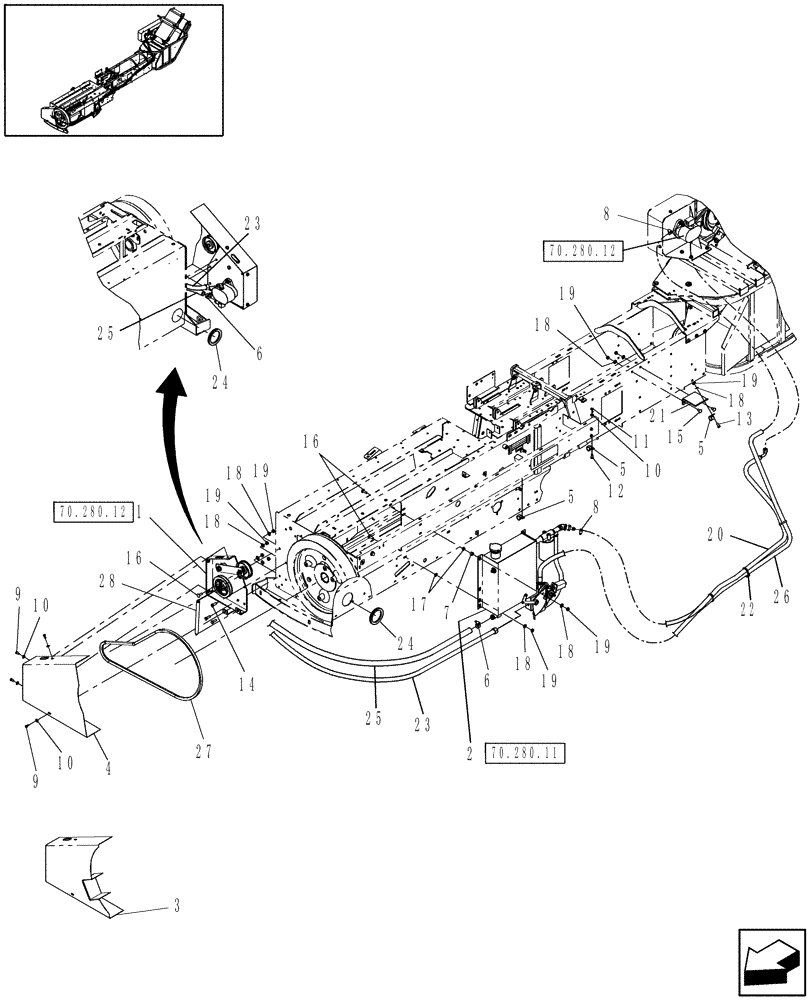

Запчасти Case IH BTX11 (70.280.10) - HYDRAULICS (70) - EJECTION

1

0C

ORDER COMPONENTS

Pump Mount

1шт.

86633914

1шт.

2

0C

ORDER COMPONENTS

Hydraulic Reservoir

1шт.

9621186

1шт.

3

9623917

GUARD

1шт.

4

87711118

SHIELD

1шт.

5

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

6

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

7

86633920

SPACER,10.32mm ID x 19.05mm OD x 11.1mm L

2шт.

8

9706921

HOSE CLAMP,12.7mm - 35mm

2шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

15

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

16

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

17

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

19

100016

NUT,M10 x 1.5, Cl 8

11шт.

20

9604653

HOSE

1шт.

21

87494317

BRACKET

1шт.

22

529070

CABLE TIE,368.3mm L

CABLE STRAP

5шт.

23

9604651

HOSE

1шт.

24

PL

PROCURE LOCALLY

Edging

2шт.

9821996

1шт.

25

9604650

HOSE,25.40 mm ID x 1220.00 mm, SAE 100R3

1шт.

26

9604654

HOSE,19.00 mm ID x 2700.00 mm, SAE 100 R3

1шт.

27

86629783

V-BELT,95.00" L

1шт.

28

86640952

SPRING

1шт.
