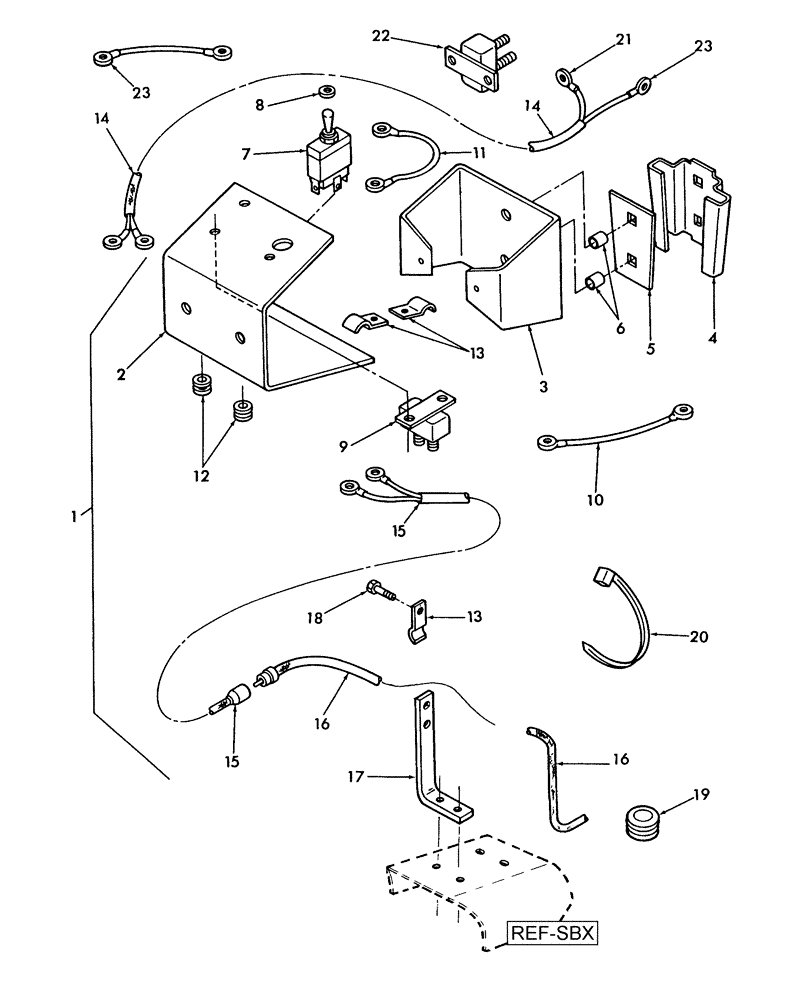

Запчасти Case IH BTX11 (70.280.09) - CONTROL PANEL & WIRING HARNESS (70) - EJECTION

1

86637980

CONTROL UNIT

Includes: Ref. 2 - 15

1шт.

2

86633391

PANEL

Control

1шт.

3

86633392

COVER

Control Panel

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

4

847590

BRACKET

1шт.

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-105

NUT,5/16"-18, G5

2шт.

5

9801636

BRACKET

Mounting

1шт.

6

86633393

SPACER

2шт.

7

9845714

TOGGLE SWITCH

6 Screw Terminal

1шт.

8

619099

WASHER

1шт.

9

768115

CIRCUIT BREAKER

15 Amp. Includes: #10 Lockwasher & Nut

1шт.

492-11010

LOCK WASHER,#10

2шт.

225-14210

NUT,#10-32

2шт.

81743

SCREW,Slotted Truss Hd, #8 - 32 x 1/2"

2шт.

492-11008

LOCK WASHER,#8

2шт.

225-14108

NUT,#8-32

2шт.

10

PL

PROCURE LOCALLY

Wire, 14" Gauge x 5" Lg.

1шт.

640122

1шт.

11

PL

PROCURE LOCALLY

Wire, Switch, 14" Gauge x 4" Lg.

2шт.

615296

1шт.

12

46288

GROMMET

2шт.

13

44429

CLAMP,9.6mm ID, 10.3mm Bolt Hole, J Type

3/16" Radius

2шт.

87101

SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

14

851715

WIRE HARNESS

134", Control Box to Power Supply

1шт.

15

86629500

WIRE HARNESS

104", Control Box to Motor Wire

1шт.

16

796574

WIRE HARNESS

297", Control Panel Wire Harness to Electrical Motor, See Gear Motor Group

1шт.

17

86630099

SUPPORT

1шт.

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

SBX530, SBX540

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1410

NUT,M10, Cl 8

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

18

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

825-1410

NUT,M10, Cl 8

1шт.

19

682052

GROMMET

1-3/4" OD x 1" ID

1шт.

Prior to P.I.N HBJ_______

1шт.

19

708115

GROMMET

2" OD x 1-3/8" ID

1шт.

P.I.N. HBJ_______ & After

1шт.

20

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

21

46431

TERMINAL CONNECTOR,16 - 14 SAE

Ring, #10 Stud

1шт.

22

768120

CIRCUIT BREAKER,20A

20 Amp.

1шт.

492-11010

LOCK WASHER,#10

2шт.

225-14210

NUT,#10-32

2шт.

23

76771

TERMINAL CONNECTOR,14 - 16 GA

3/8" Stud

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

SBX520

2шт.
