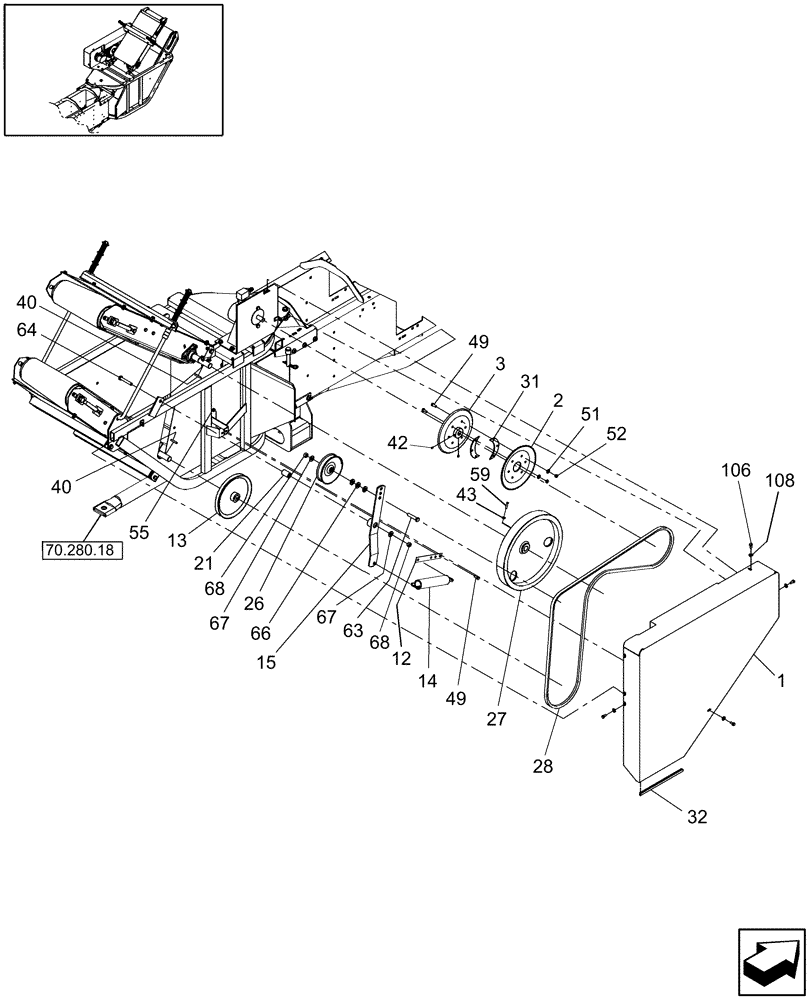

Запчасти Case IH BTX11 (70.280.05) - DRIVES (70) - EJECTION

1

86633902

SHIELD

1шт.

2

86641496

SHEAVE

1шт.

3

86641495

SHEAVE

1шт.

12

65383

CLIP

1шт.

13

86629516

SHEAVE

1шт.

14

86836864

SPRING

1шт.

15

9601450

SUPPORT

1шт.

21

86640801

SPACER,13.1mm ID x 25.53mm OD x 41.27mm L

1шт.

26

214517

PULLEY

1шт.

27

86626199

BALER FLYWHEEL

1шт.

28

86634492

V-BELT,0.66" W x 115.00" L

1шт.

31

86640800

SPACER

2шт.

32

291525

BRACKET

1шт.

40

87479

KEY

1/4" x 1-1/2", for 0.98" ID sheave, included in 86517694 Kit for Machines BSN 814645

2шт.

40

87483

KEY,0.31" x 1.5" L

5/16" x 1-1/2", for 1.00" ID sheave, included in 86517695 Kit for machines Between SN 814646 & 898625 , used on & ASN 898625

1шт.

42

80438

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

2шт.

43

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

49

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

52

9706690

NUT,M8 x 1.25, Cl 8

6шт.

55

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

59

88971

SET SCREW,5/16" - 18 x 1"

2шт.

63

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

64

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

66

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

3шт.

67

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

68

9706685

NUT,M12 x 1.75, Cl 8

2шт.

106

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

108

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.
