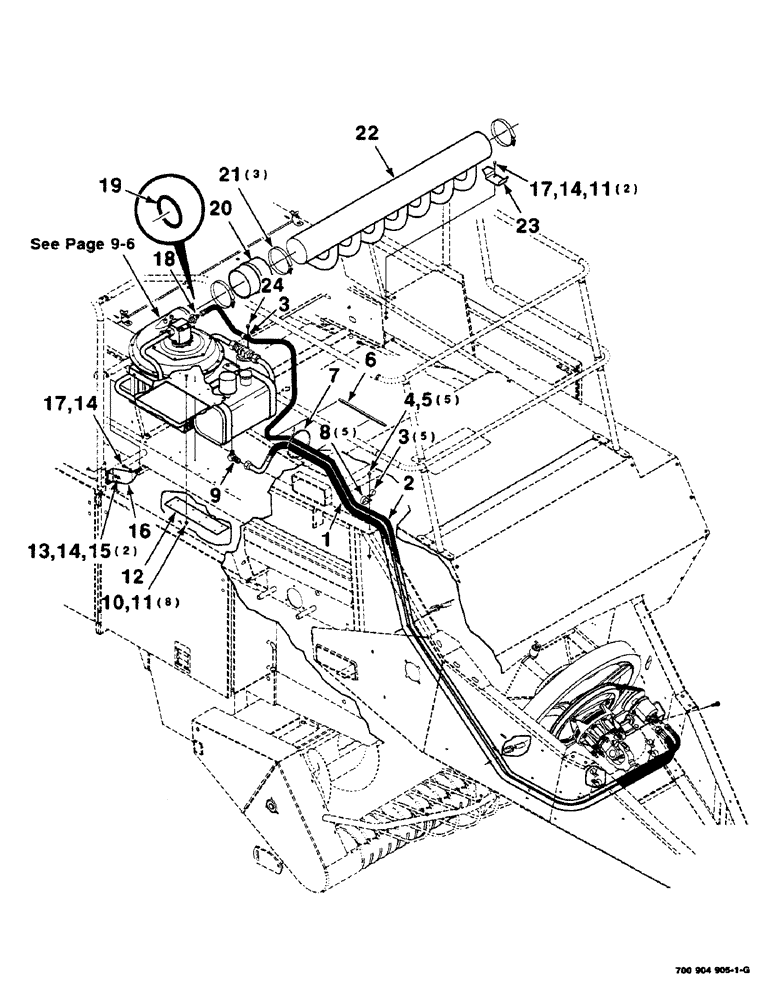

Запчасти Case IH 8585 (9-14) - KNOTTER BLOWER KIT, 8585, HK40954 KNOTTER BLOWER KIT COMPLETE

HK40954

KIT

KNOTTER BLOWER KIT COMPLETE

1шт.

1

700717865

HOSE

- hydraulic

1шт.

2

700701764

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

6шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

5шт.

5

329-286

FLANGE NUT,Flg, 3/8"-16, G8

5шт.

6

700105144

GROMMET

TRIM

1шт.

7

7721798

CABLE

TIE - nylon

1шт.

8

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

5шт.

9

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - hyd, 90°

1шт.

10

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

8шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

12

700149723

STRAP

- support

1шт.

13

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 X 3/4 CRPHMS

2шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

5шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

16

700149734

SUPPORT

- blower

1шт.

17

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

18

700701753

HYD CONNECTOR

FITTING - hyd (Includes item 19)

1шт.

19

738484

O-RING

1шт.

20

700717760

ADAPTER

- rubber

1шт.

21

700717761

CLAMP

- t-bolt

3шт.

22

700149720

MANIFOLD

WA

1шт.

23

700149725

CHANNEL

- mounting

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.
