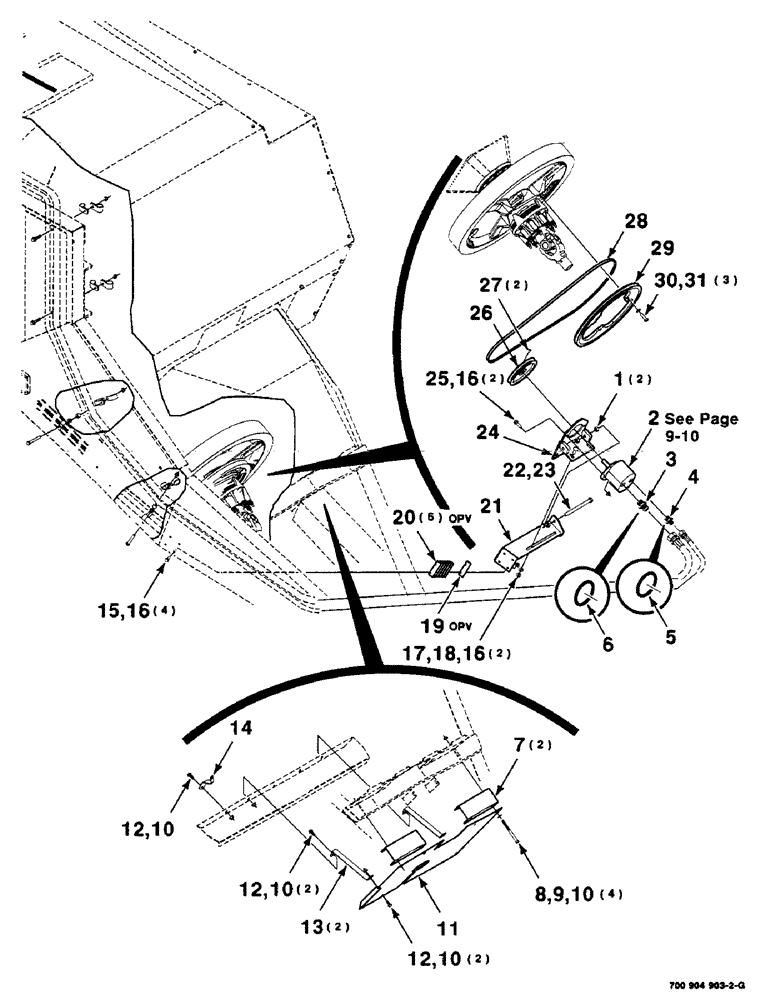

Запчасти Case IH 8575 (9-04) - KNOTTER BLOWER KIT, (CONT)

1

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

2

700717866

PUMP

- hydraulic

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 6) 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

4

7846793

CONNECTOR, ELEC

FITTING - hydraulic (Includes item 5)

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

738484

O-RING

1шт.

7

700133097

SUPPORT

- shield

2шт.

8

873018

BOLT,5/16" - 18 x 3 3/4", Gr 5

5/16-18 X 3-3/4 C

4шт.

9

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

9шт.

11

700150595

SHIELD

- flywheel

1шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

13

700150596

STRAP

- support, shield

2шт.

14

700150597

STRAP

- support, cable

1шт.

15

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

16

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

19

700718483

SHIM

-.018

1шт.

20

700718484

SHIM

-.034

6шт.

21

700149737

ANGLE

WA - mounting, pump

1шт.

22

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

1шт.

23

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

24

700149726

SUPPORT

WA - pump

1шт.

25

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

26

700149735

SHEAVE

- HA

1шт.

27

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

1/4-20 X 3/8 CPHSSS NP

2шт.

28

700717886

V-BELT,1676.40 mm L

1шт.

29

700149736

SHEAVE

- HA

1шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.
