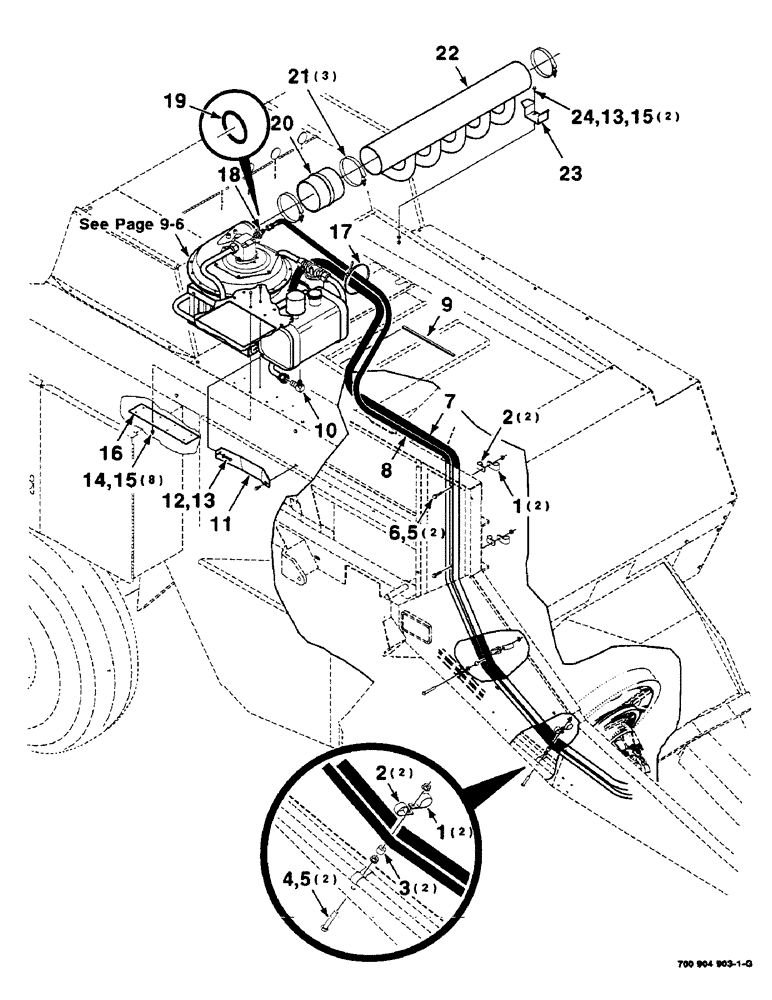

Запчасти Case IH 8575 (9-02) - KNOTTER BLOWER KIT, 8575, HK40953 KNOTTER BLOWER KIT COMPLETE

HK40953

KIT

KNOTTER BLOWER KIT COMPLETE

1шт.

1

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

4шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

4шт.

3

M42297

SPACER

2шт.

4

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

5

329-286

FLANGE NUT,Flg, 3/8"-16, G8

4шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

7

700717865

HOSE

- hydraulic

1шт.

8

700718207

HOSE

- hydrualic

1шт.

9

700105144

GROMMET

TRIM

1шт.

10

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - hyd, 90°

1шт.

11

700150589

SUPPORT

- blower

1шт.

12

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

13

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

14

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

8шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

16

700149723

STRAP

- support

1шт.

17

7721798

CABLE

TIE - nylon

1шт.

18

701753

FITTING - hyd (Includes item 19)

1шт.

19

738484

O-RING

1шт.

20

700717760

ADAPTER

- rubber

1шт.

21

700717761

CLAMP

- t-bolt

3шт.

22

700149743

MANIFOLD

WA

1шт.

23

700150591

CHANNEL

- mounting

1шт.

24

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.
