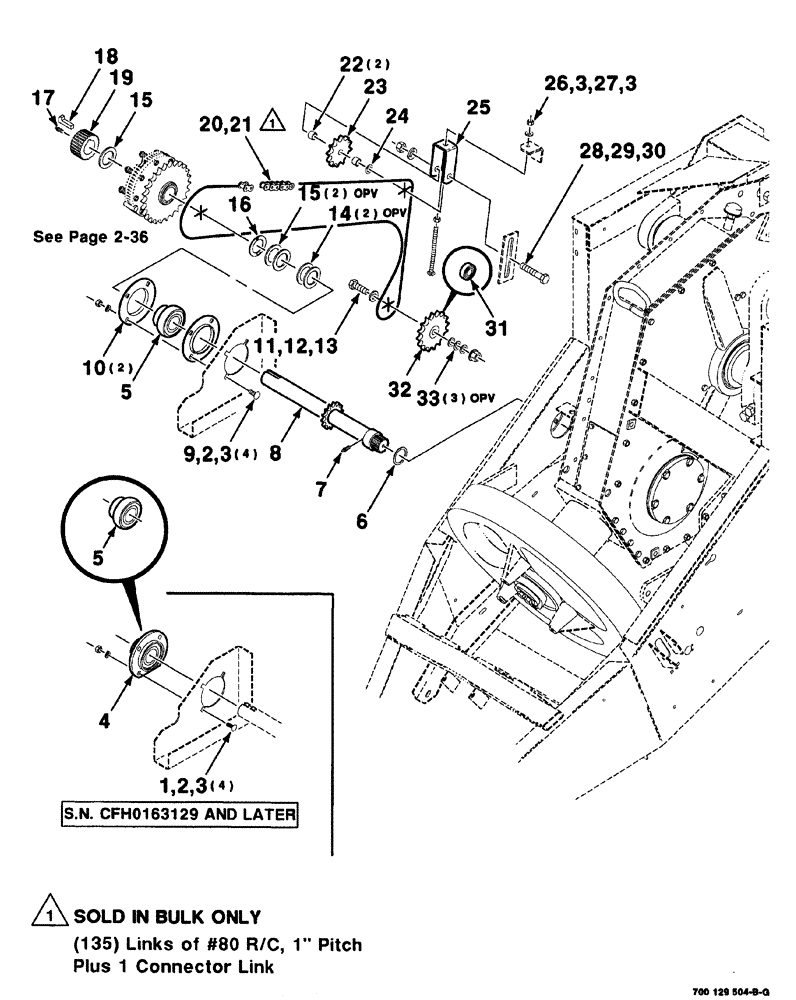

Запчасти Case IH 8575 (02-034) - AUXILIARY DRIVE ASSEMBLY - RIGHT Driveline

1

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

3

425-108

NUT,1/2" - 13, Gr 5

10шт.

4

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

ASSEMBLY, Includes: Ref. 5

1шт.

5

712158

SPHERICAL BEARING,2" ID x 100 mm OD

spherical

2шт.

6

700710542

SEALING RING

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

700123332

SHAFT

1шт.

9

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

10

714360

FLANGED BEARING

flange

2шт.

11

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

12

705566

WASHER

hardened plain, 3/4

1шт.

13

232-41112

NUT,3/4"-10, GC

1шт.

14

7852866

BUSHING

2 x 18 gauge NRMB

2шт.

15

740407

BRUSH, COMMUTATOR

BRUSH 2 x 10 gauge NRMB

3шт.

16

8052177

WASHER

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

700706643

KEY

1/2 x 1/2 x 1-3/4 GIB

1шт.

19

700112925

HUB

splined, 28 tooth

1шт.

20

654437R91X

CHAIN,#80, 93 Links x 25.4mm = 2362.2mm

roller, #80 (10 foot bulk)

1шт.

21

241-1418

SPRING CLIP

CONNECTOR link, #80 R/C (W/C Pins)

1шт.

22

6823512

SPACER

2шт.

23

747931

DECAL

IDLER, 12 tooth

1шт.

24

52183

BUSHING

3/4 x 18 gauge NRMB

1шт.

25

700123330

CLEVIS

1шт.

26

7770878

BOLT,Sq Nk, 1/2" - 13 x 7", Gr 5, Full Thd

1/2-13 x 7 FT RHSNB

1шт.

27

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

1шт.

28

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 x 4 C

1шт.

29

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

30

425-1012

NUT,3/4"-10, G5

1шт.

31

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

1шт.

32

700123336

SPROCKET ASSY.

16 tooth, Includes: Ref. 31

1шт.

33

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 x 14 gauge NRMB

3шт.
