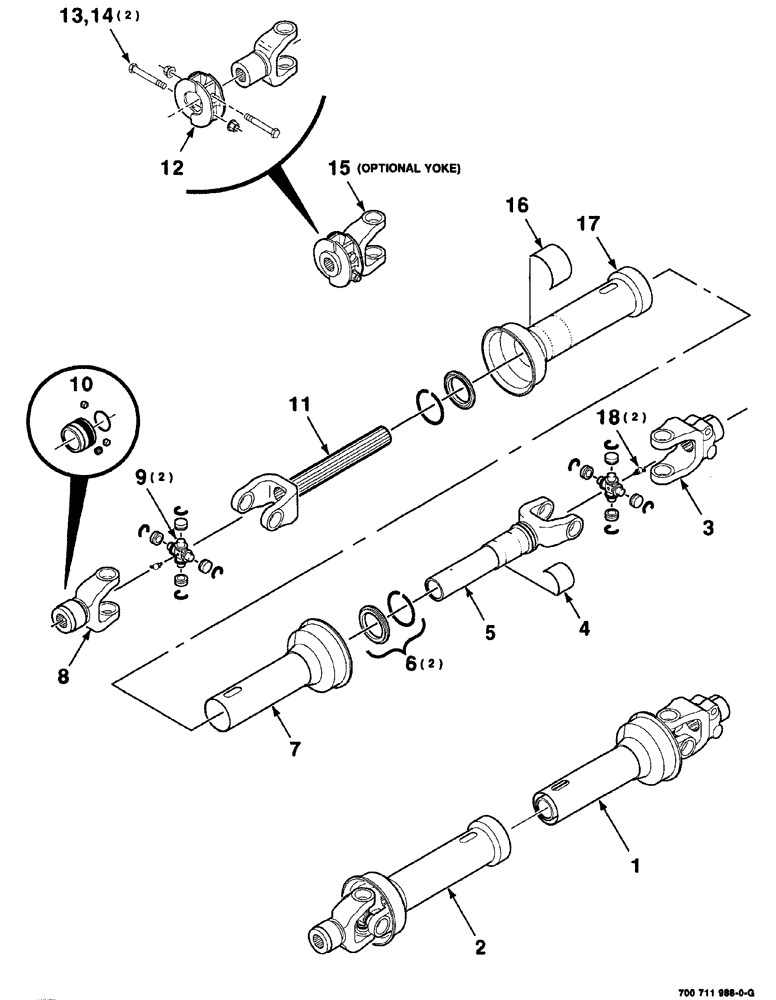

Запчасти Case IH 8575 (02-008) - DRIVELINE-IMPLEMENT ASSEMBLY Driveline

1

700712443

REAR PTO ASSY

JOINT slip, half, female

1шт.

2

700712444

PTO

POWER TAKE OFF JOINT slip, tractor half

1шт.

3

700712517

YOKE

YOKE splined, clamp

1шт.

4

1326528C1

DECAL

DANGER shield missing

1шт.

5

700712445

YOKE

YOKE AND TUBE

1шт.

6

700712579

BEARING ASSY

KIT AND RETAINER

2шт.

7

700712446

SHIELD

inner

1шт.

8

8802548

FORK

YOKE QD

1шт.

9

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT, cross and bearing, Includes: Ref. 18

2шт.

10

700720122

REPAIR KIT

S S L, YOKE, repair

1шт.

11

700706966

YOKE

YOKE shaft

1шт.

12

700712475

CLAMP

CLAMP ASSEMBLY YOKE, Includes: Refs. 13 and 14

1шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

14

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

15

700712474

YOKE

YOKE ASSEMBLY, clamp, 1-3/8-21, spline optional, Includes: Refs. 12, 13 and 14

1шт.

16

80672C1

DECAL

DANGER, Rotating Driveline

1шт.

17

700712447

SHIELD

outer

1шт.

18

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK

2шт.
