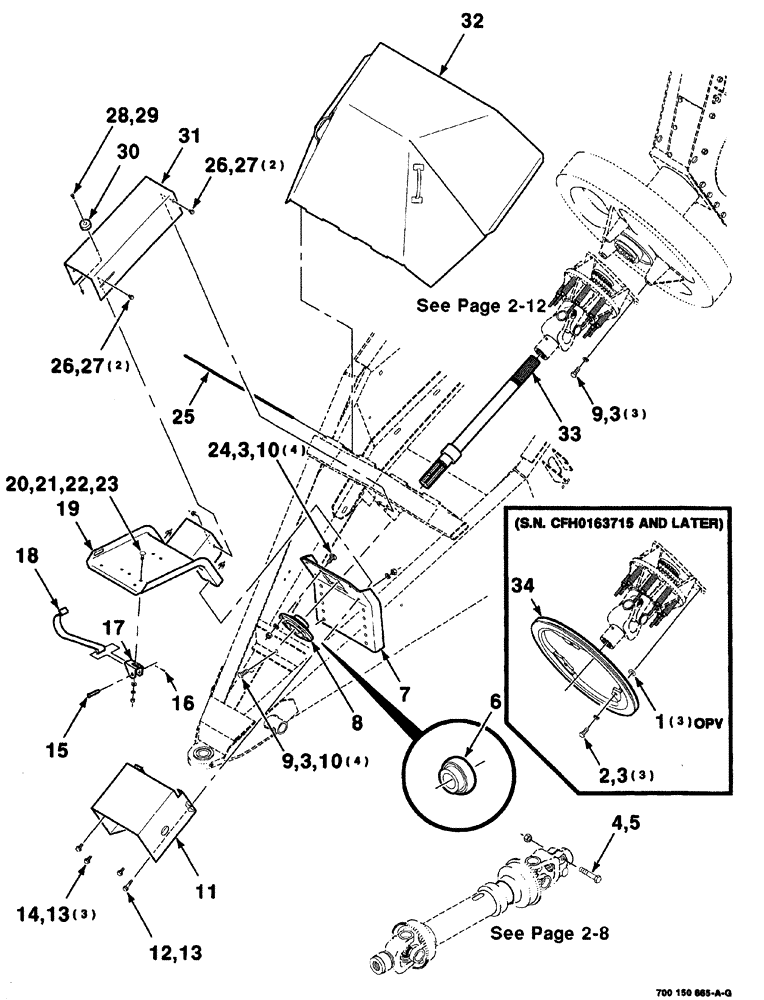

Запчасти Case IH 8575 (02-006) - DRIVE LINE AND SHIELDS ASSEMBLY, S.N. CFH0163233 AND LATER Driveline

1

7852213

SHIM

.012

3шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

4

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

5

232-53110

FLANGE NUT,Flg, 5/8"-11

ZP&O

1шт.

6

51318

BEARING

spherical

1шт.

7

700113022

SUPPORT

1шт.

8

700124004

BEARING ASSY,44.45 mm ID x 85 mm OD x 29 mm

BEARING ASSEMBLY, Includes: Ref. 6

1шт.

9

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

7шт.

10

425-108

NUT,1/2" - 13, Gr 5

8шт.

11

700123829

SHIELD

1шт.

12

700711134

SCREW

3/8-16 x 1-3/4 HFS GR8

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

15

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

PIN clevis, 3/8 x 2

1шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

17

700150655

CHANNEL

SUPPORT

1шт.

18

700123831

SUPPORT

STRAP

1шт.

19

700150657

SUPPORT

WA

1шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

1шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

25

65250

PIN,4.76mm OD x 571.5mm L

hinge

1шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

700707203

CAPTIVE WASHER SCREW

#12-24 x 3/4 HWHMS

1шт.

29

1954816C1

LOCK NUT

special, #12-24 HCLN

1шт.

30

700708648

BUMPER

1шт.

31

700123839

SHIELD

PTO

1шт.

32

700123840

SHIELD

WA

1шт.

33

700123820

SHAFT

1шт.

34

700149736

SHEAVE

1шт.
