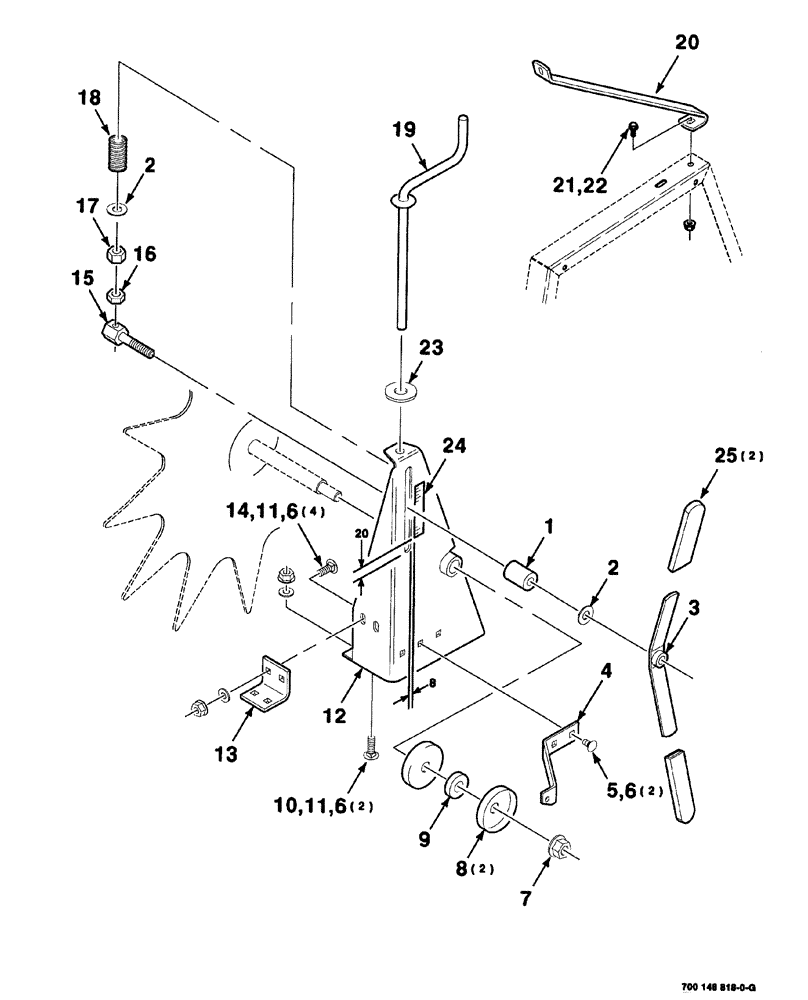

Запчасти Case IH 8575 (09-044) - BALE LENGTH ADJUSTMENT KIT, 700148818 BALE LENGTH ADJUSTMENT KIT COMPLETE Decals & Attachments

1

6234710

SPACER

1шт.

2

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

3

700134935

LEVER

ASSEMBLY

1шт.

4

700134937

SUPPORT

SPRING

1шт.

5

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

6

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

8

700123850

SHIELD

WHEEL

2шт.

9

6530489

HUB

spacer

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

6шт.

12

700134931

BRACKET

WA starwheel

1шт.

13

700134449

ANGLE

support

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

4шт.

15

700134527

SHAFT

adjust

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

1шт.

18

58024

SPRING

compression

1шт.

19

700134938

CRANKED HANDLE

WA

1шт.

20

700152228

ANGLE

support

1шт.

21

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

22

232-5315

FLANGE NUT,Flg, 5/16"-18

5/1 6-1 8 HFTLN GR/G

1шт.

23

700711557

WASHER

hardened wide plain, 1/2

1шт.

24

700714164

DECAL

indicator

1шт.

25

827360

HANDLE

GRIP

2шт.
