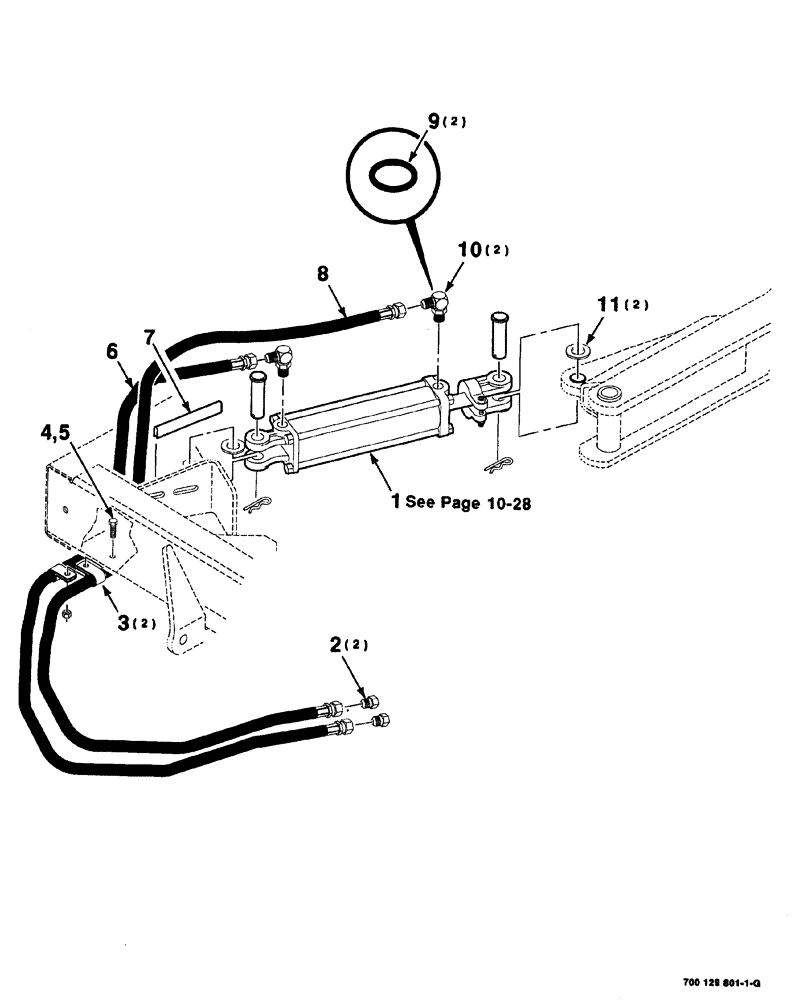

Запчасти Case IH 8575 (10-026) - HYDRAULIC ASSEMBLY Accumulator

1

700715531

CYLINDER

ASSEMBLY hydraulic

1шт.

2

218-775

PLUG,3/4"-16, 37 Degree

2шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

6

700715222

HOSE

hydraulic

1шт.

7

700105142

GROMMET

PLASTIC, trim

1шт.

8

1714682

HOSE

hydraulic

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 9

2шт.

11

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.
