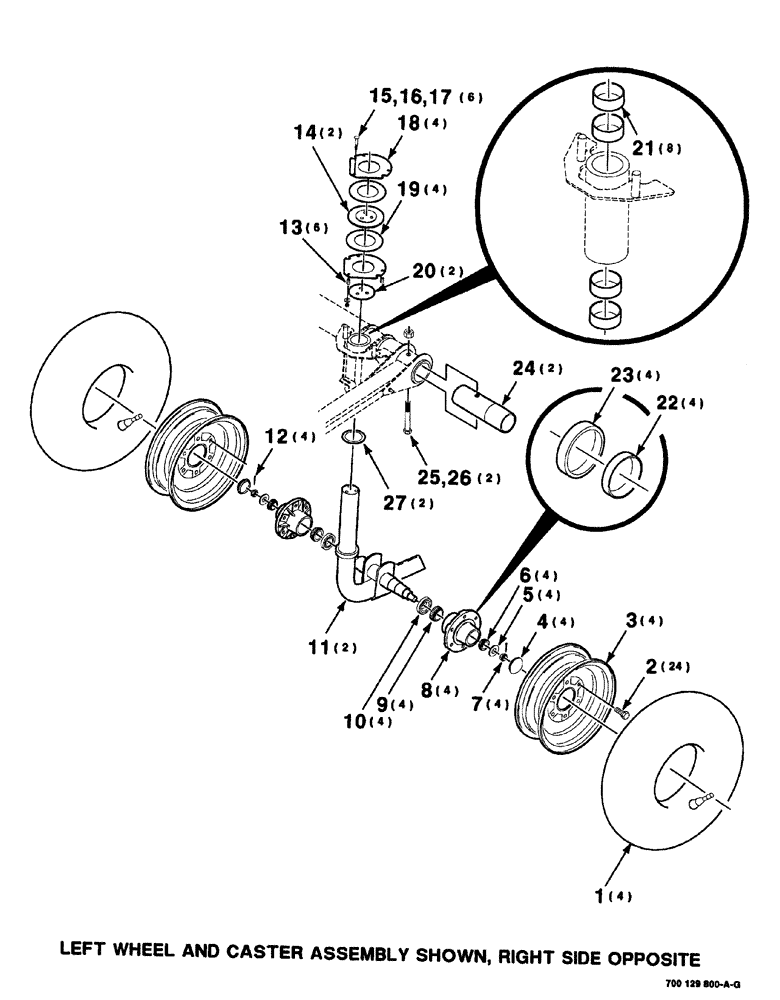

Запчасти Case IH 8575 (10-024) - CASTER, HUB AND WHEEL ASSEMBLIES Accumulator

1

702700234

TIRE TUBE

4шт.

2

T52730

WHEEL BOLT

wheel, 9/16-18

24шт.

3

481344R91

WHEEL

4шт.

4

D143405

CAP

hub

4шт.

5

26971

WASHER

4шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

4шт.

7

425-1314

SLOTTED NUT,7/8"-14, G5

4шт.

8

26690

HUB

ASSEMBLY, Includes: Ref. 22 and 23

4шт.

9

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

4шт.

10

491715R91

OIL SEAL

4шт.

11

700113767

CASTER

CASTER WA

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

4шт.

13

58644

SPRING

compression

6шт.

14

700113781

CLUTCH PLATE

2шт.

15

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 x 2-3/4 RHSNB

6шт.

16

495-21044

WASHER,3/8"

6шт.

17

231-1406

LOCK NUT,3/8"-16, GB

6шт.

18

700129465

LARGE PLATE

PLATE, LARGE pressure

4шт.

19

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

friction

4шт.

20

700113780

CAP WASHER

2шт.

21

6597413

BRONZE BUSHING

BRONZE BUSH bearing

8шт.

22

130503H

BEARING CUP

CUP

4шт.

23

165964R1

BEARING CUP

4шт.

24

700113861

TUBE,95.25 mm OD, 300 mm Length

extension

2шт.

25

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

3/4-10 x 5-1/2 C

2шт.

26

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

2шт.

27

6595052

WASHER,76.99mm ID x 101.6mm OD x 1.8mm Thk

2шт.
