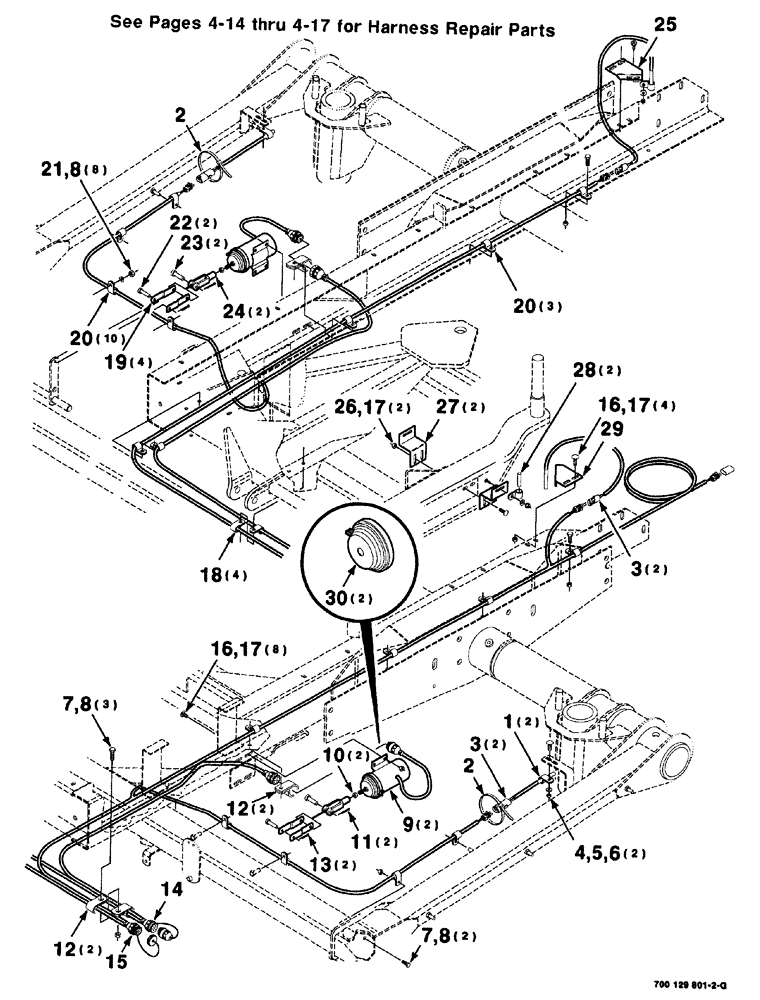

Запчасти Case IH 8575 (10-022) - ELECTRICAL ASSEMBLY, SEE PAGES 4-14 THRU 4-17 FOR HARNESS REPAIR PARTS Accumulator

1

751321

CLAMP

line, 1/4"

2шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

2шт.

3

700113863

SENSOR

ASSEMBLY

4шт.

4

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 RHSNB

2шт.

5

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

2шт.

6

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

13шт.

9

700706865

SOLENOID

2шт.

10

425-115

NUT,5/16"-24, G5

2шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line

4шт.

13

62034

BATTERY

PIN cotter, 3/32 x 3/4

2шт.

14

700715008

HARNESS

BALE, unload

1шт.

15

700715007

HARNESS

ACCUMULATOR

1шт.

16

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

17

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

14шт.

18

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

4шт.

19

700129948

LINK

SOLENOID

4шт.

20

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line

13шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

8шт.

22

427-4077

CLEVIS PIN,1/4" x .770"

2шт.

23

427-5112

CLEVIS PIN,5/16" x 1 1/8"

clevis, 5/16 x 1

2шт.

24

66498

CLEVIS

2шт.

25

700129899

ANGLE

switch, right

1шт.

26

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

2шт.

27

700129988

SUPPORT

MAGNET

2шт.

28

700706340

MAGNET

2шт.

29

700129897

ANGLE

switch, left

1шт.

30

700706998

BOOT

KIT

2шт.
