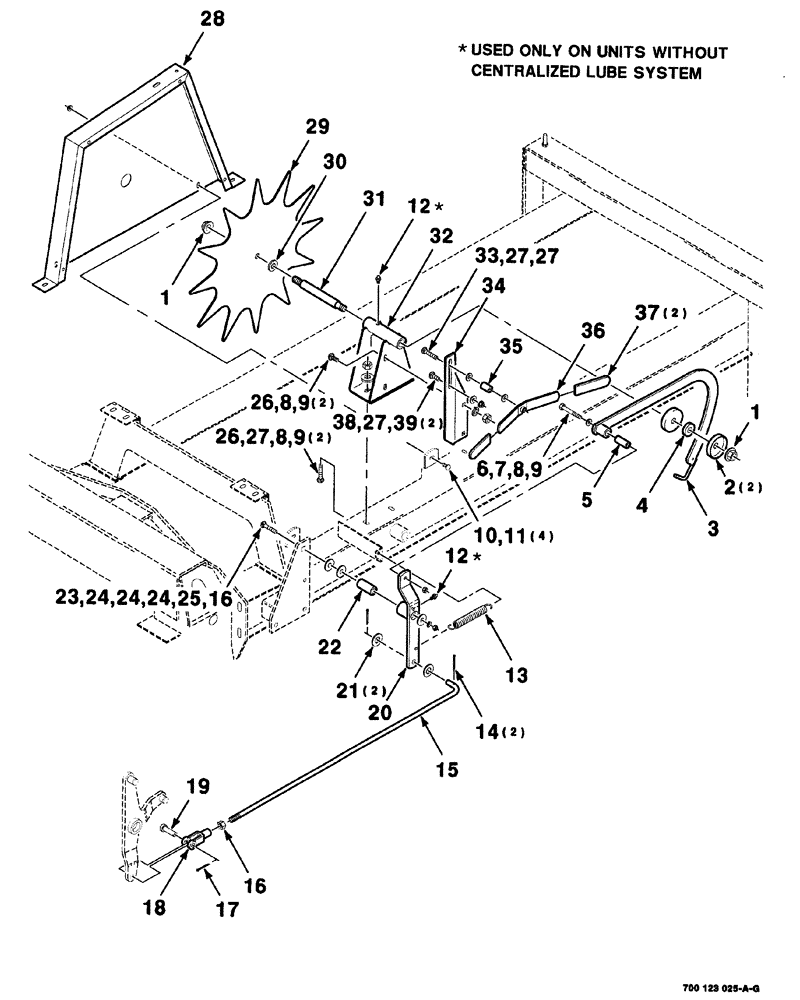

Запчасти Case IH 8575 (05-028) - STARWHEEL ASSEMBLY, S.N. CFH0113001 THRU CFH0163128 (16) - BALE EJECTOR

1

232-53110

FLANGE NUT,Flg, 5/8"-11

2шт.

2

700123850

SHIELD

2шт.

3

700123857

ARM

1шт.

4

6530489

HUB

SPACER

1шт.

5

700109003

BUSHING

1шт.

6

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C

1шт.

7

495-21044

WASHER,3/8"

1шт.

8

492-11038

LOCK WASHER,3/8"

5шт.

9

425-106

NUT,3/8"-16, Cl 5

5шт.

10

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

758441

SPRING

1шт.

14

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

15

700123860

ROD

linkage

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

2шт.

17

432-816

COTTER PIN,1/8" x 1"

1шт.

18

66183

SHAFT

1шт.

19

427-8150

CLEVIS PIN,1/2" x 1 1/2"

clevis, 1/2 x 1-1/2

1шт.

20

700123852

ARM

PIVOT

1шт.

21

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

22

6621825

SPACER

BUSHING

1шт.

23

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

1шт.

24

495-21056

WASHER,1/2"

wide plain, 1/2

3шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

4шт.

27

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

6шт.

28

700133189

SHIELD

starwheel

1шт.

29

700123856

SPROCKET ASSY.

starwheel

1шт.

30

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

31

700123855

SHAFT

starwheel

1шт.

32

6530265

BRACKET

1шт.

33

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 x 2-1/2 RHSNB

1шт.

34

700123859

SUPPORT

1шт.

35

6229298

SPACER

BUSHING

1шт.

36

700123991

LEVER

1шт.

37

827360

HANDLE

GRIP

2шт.

38

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

39

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.
