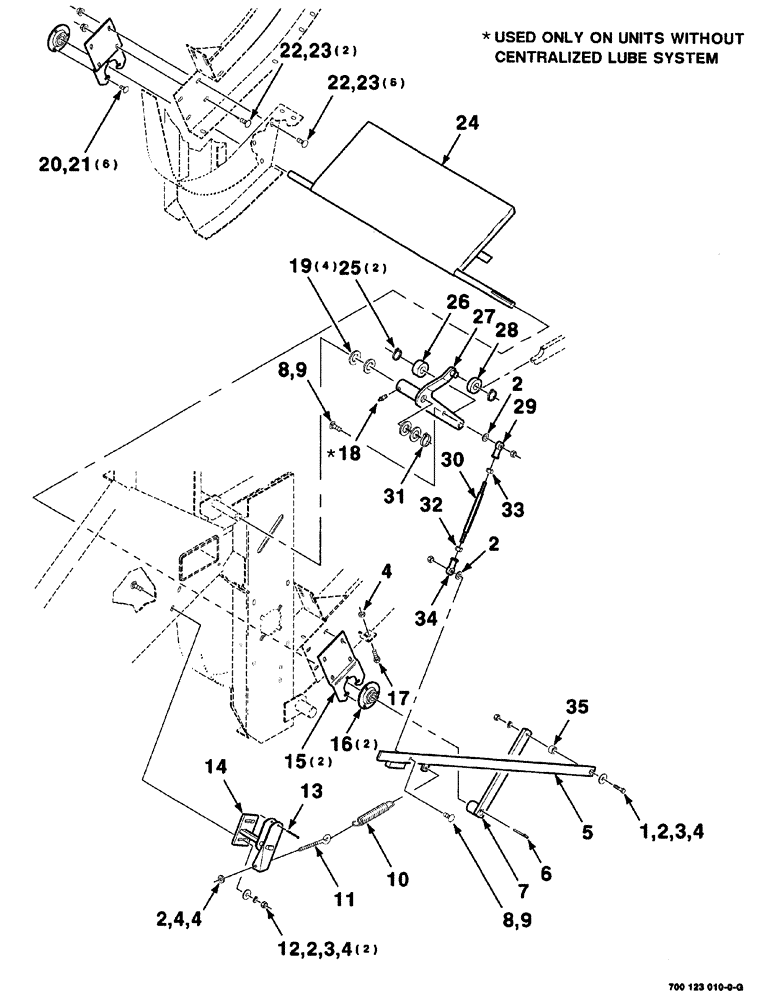

Запчасти Case IH 8575 (05-018) - FEEDER LINKAGE AND DOOR ASSEMBLY (16) - BALE EJECTOR

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

6шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

425-106

NUT,3/8"-16, Cl 5

6шт.

5

700123429

ARM

TRIP

1шт.

6

61978

KEY

gib, 1/4 x 2-1/2

1шт.

7

6524946

WIPER ARM

ARM, WIPER DOOR

1шт.

8

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

2шт.

9

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN

2шт.

10

858308

SPRING

tension

1шт.

11

766485

EYEBOLT,3/8" - 16 x 5", Full Thd

BOLT, EYE draw

1шт.

12

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

13

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

14

700123432

STOP

ARM

1шт.

15

700112815

SUPPORT

2шт.

16

N5077

FLANGED BEARING

2шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

FTC

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

19

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 x 10 NRMB

4шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

22

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

23

231-5146

FLANGE NUT,3/8"-16

8шт.

24

700123425

DOOR

1шт.

25

100-1175

SNAP RING,#75, Ext

2шт.

26

6524870

ROLLER,41.28mm OD x 19mm L

CAM

1шт.

27

700123435

STOP

ARM cam

1шт.

28

6525042

ROLLER,41.28mm OD x 12.5mm L

CAM

1шт.

29

CAS51383

END

ROD bearing

1шт.

30

700123439

ROD

1шт.

31

100-11100

SNAP RING,#100, Ext

1шт.

32

129-323

SPECIAL NUT,3/8"-24, G5, LH

1шт.

33

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

34

700705523

SPHERICAL BEARING,9.52 mm ID x 12.7 mm

BRG ROD END, L.H. thread

1шт.

35

6179832

SPACER

1шт.
