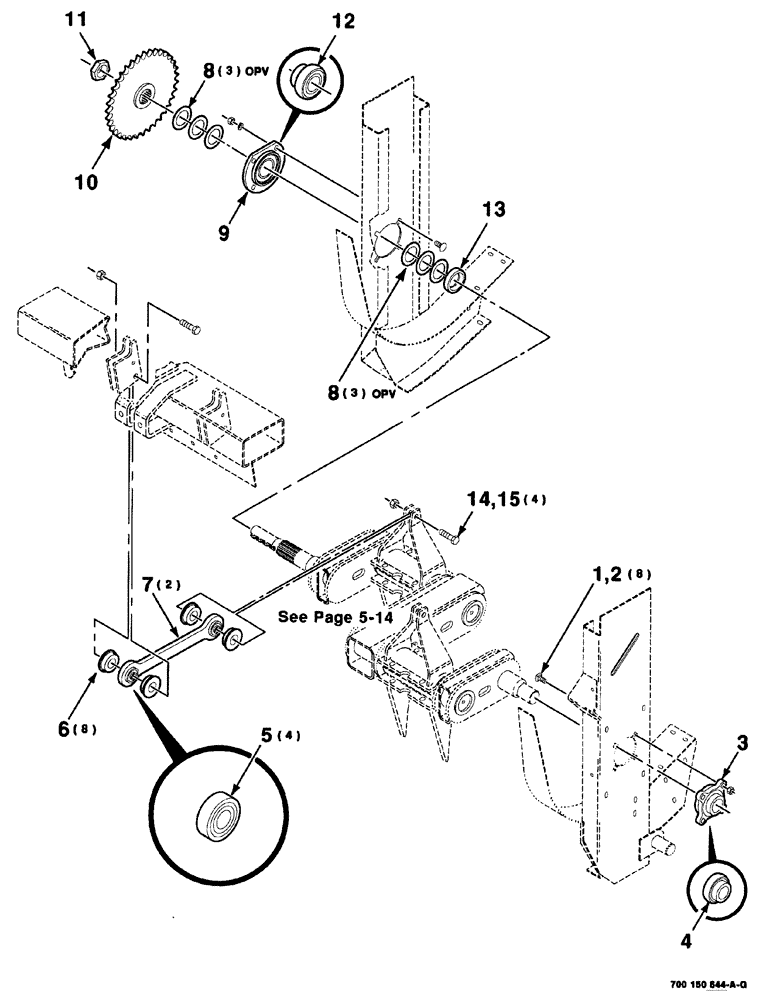

Запчасти Case IH 8575 (05-012) - CRANK DRIVE AND MOUNTING ASSEMBLY, S.N. CFH0163129 AND LATER (16) - BALE EJECTOR

1

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

8шт.

2

329-288

FLANGE NUT,Flg, 1/2"-13, G8

8шт.

3

700717917

BEARING ASSY,44.45 mm ID x 96 mm OD x 34.93 mm

BEARING ASSEMBLY, Includes: Ref. 4

1шт.

4

714113

SPHERICAL BEARING,1.75" ID x 85 mm OD

spherical

1шт.

5

616154R92

BEARING, ROLLER, CYL,16 mm

cylindrical

4шт.

6

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

BEARING

8шт.

7

700124036

LINK CONROD

ASSEMBLY, Includes: Ref. 5

2шт.

8

852947

BUSHING

2-1/4 x 14 gauge NRMB

6шт.

9

700716611

BEARING ASSY,55.56 mm ID x 111.91 mm OD x 31 mm

ASSEMBLY, Includes: Ref. 12

1шт.

10

700137337

SPROCKET ASSY.

WA 80C35 tooth

1шт.

11

700715751

NUT

STAKE

1шт.

12

700704263

SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm

spherical

1шт.

13

700137336

SPACER

1шт.

14

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4C

4шт.

15

232-41110

NUT,5/8"-11, GC

4шт.
