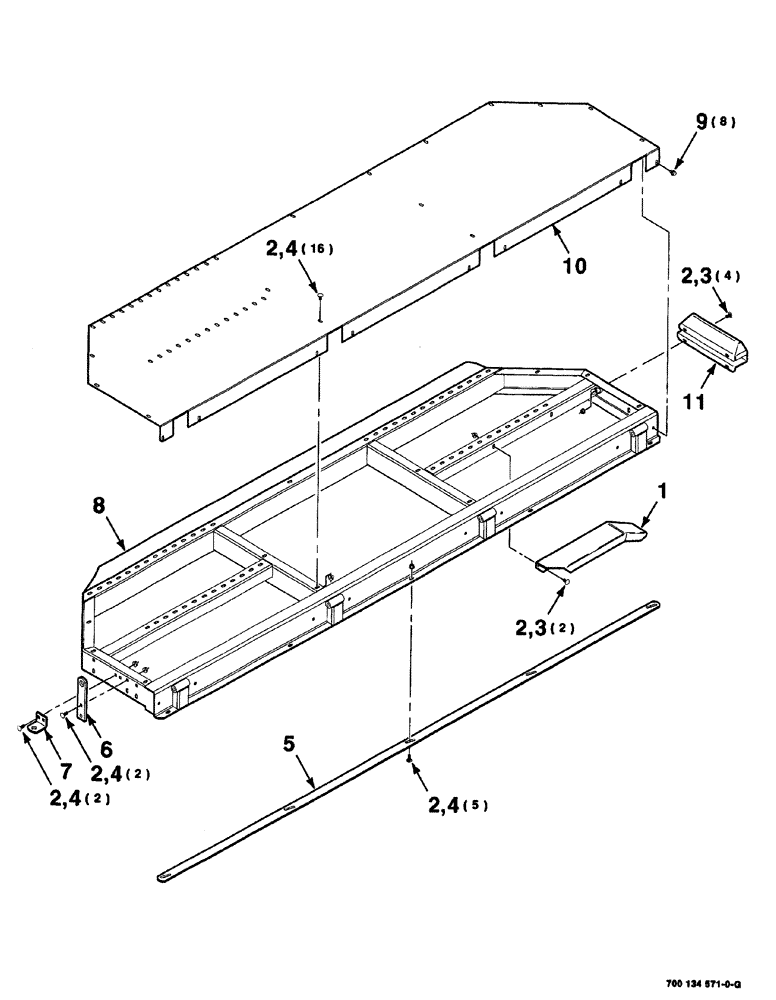

Запчасти Case IH 8575 (10-014) - WING CART ASSEMBLY (RIGHT) Accumulator

1

700134587

STOP

WA WING, right

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

31шт.

3

329-286

FLANGE NUT,Flg, 3/8"-16, G8

6шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

25шт.

5

700129986

STRAP

WING, adjustment

1шт.

6

700134590

STRAP

WING, latch

1шт.

7

700129942

ANGLE

mounting, spring

1шт.

8

700134572

FUNNEL

FRAME WING WA cart

1шт.

9

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3/8-16 x 1/2 HFSS

8шт.

10

700134584

FLOOR

WING, right

1шт.

11

700134582

CHANNEL

WINH, rear

1шт.
