Запчасти Case IH 8575 (08-024) - KNOTTER BLOWER ASSEMBLY-CONTINUED (BLOWER & RESERVOIR) (07) - HYDRAULICS

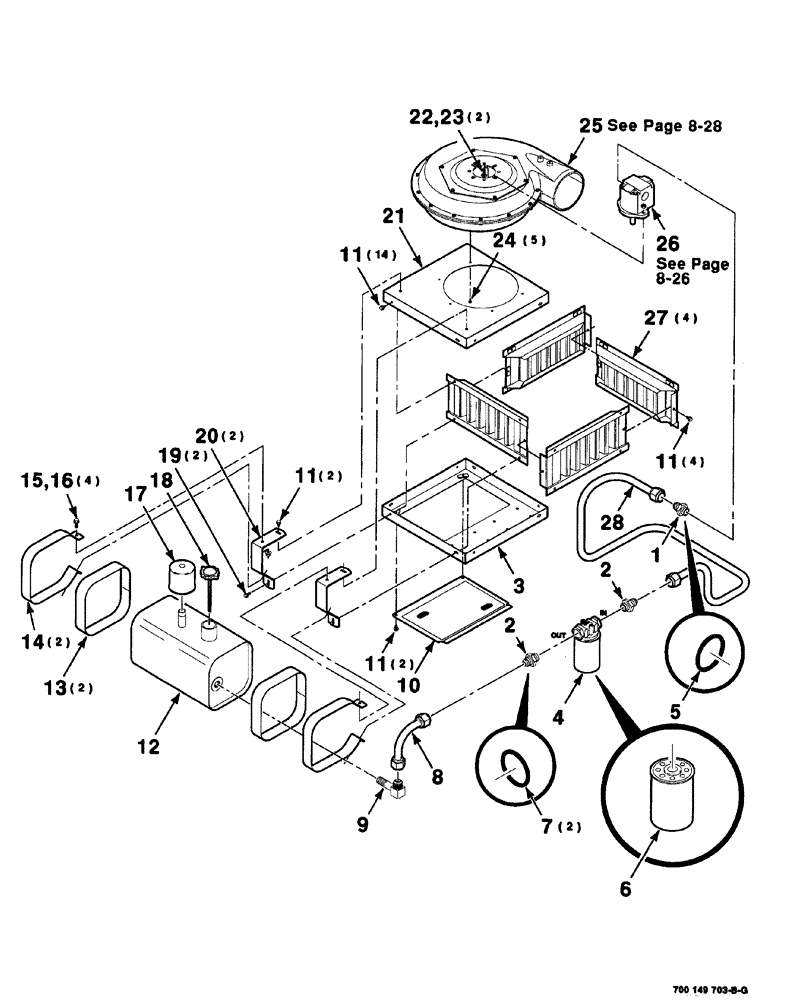

Схема запчастей Case IH 8575 - (08-024) - KNOTTER BLOWER ASSEMBLY-CONTINUED (BLOWER & RESERVOIR) (07) - HYDRAULICS
3
5
19
7
11
11
18
12
6
8
15
24
16
4
17
27
10
25
2
28
2
11
11
13
20
9
23
26
22
1
21
14

Артикул

Название

Примечание

Количество

1

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 5

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 7

2шт.

3

700149712

PANEL

WA lower

1шт.

4

700710972

FILTER

ASSEMBLY, Includes: Ref. 6

1шт.

5

738484

O-RING

1шт.

6

7033616

FILTER

element

1шт.

7

738476

O-RING

2шт.

8

700717695

LINE

hydraulic

1шт.

9

700717705

ELBOW

male, 90 Deg. long

1шт.

10

700149714

SCREEN

WA access

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

22шт.

12

700714482

RESERVOIR

oil

1шт.

13

844498

FELT

liner oil, reservoir

2шт.

14

700149719

STRAP

oil, reservoir

2шт.

15

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

17

7825516

FILTER

oil

1шт.

18

700708076

FILLER CAP

1шт.

19

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

20

700149718

STRAP

mounting, reservoir

2шт.

21

700149710

PANEL

WA upper

1шт.

22

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

23

231-1406

LOCK NUT,3/8"-16, GB

2шт.

24

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 x 3/4 HWHMS

5шт.

25

700717713

BLOWER

1шт.

26

700717759

MOTOR

ASSEMBLY, hydraulic

1шт.

27

700149704

SCREEN

WA

4шт.

28

700717696

LINE

hydraulic

1шт.

Выбрано товаров: 28
