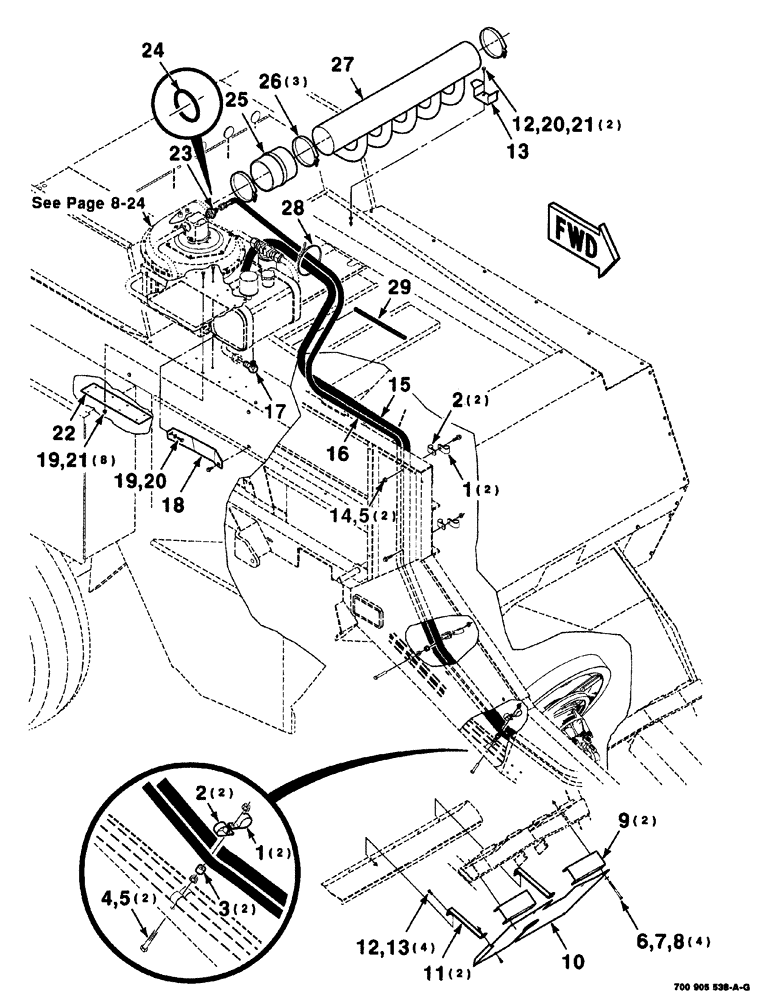

Запчасти Case IH 8575 (08-018) - KNOTTER BLOWER ASSEMBLY (07) - HYDRAULICS

1

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line

2шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

4шт.

3

6553804

SPACER

2шт.

4

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

5

329-286

FLANGE NUT,Flg, 3/8"-16, G8

4шт.

6

873018

BOLT,5/16" - 18 x 3 3/4", Gr 5

5/16-18 x 3-3/4 C

4шт.

7

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

700133097

SUPPORT

SHIELD

2шт.

10

700150595

SHIELD

flywheel

1шт.

11

700150596

STRAP

SHIELD, support

2шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

13

700150591

CHANNEL

mounting

5шт.

14

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4 HFS GR8

2шт.

15

700717865

HOSE

hydraulic

1шт.

16

700718207

HOSE

hydraulic

1шт.

17

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

hydraulic, 90 Deg.

1шт.

18

700150589

SUPPORT

blower

1шт.

19

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 x 1 HWHMS

9шт.

20

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

3шт.

21

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

22

700149723

STRAP

support

1шт.

23

700701753

HYD CONNECTOR

hydraulic, Includes: Ref. 24

1шт.

24

738484

O-RING

1шт.

25

700717760

ADAPTER

RUBBER

1шт.

26

700717761

CLAMP

T BOLT

3шт.

27

700149743

MANIFOLD

WA

1шт.

28

7721798

CABLE

TIE nylon

1шт.

29

700105144

GROMMET

trim

1шт.
