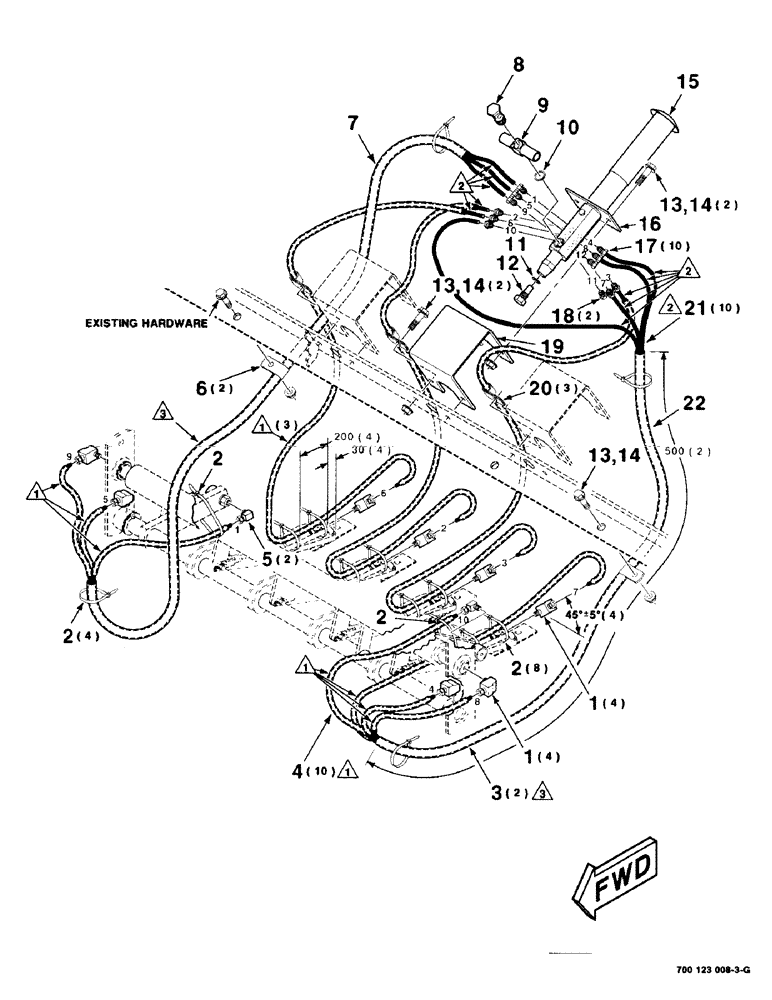

Запчасти Case IH 8575 (6-22) - LUBE PUMP AND LINE ASSEMBLY, TWINE FINGERS (14) - BALE CHAMBER

1

51200288

ELBOW

-MALE (Includes Ref: 17)

8шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

14шт.

3

700123362

FLEXIBLE SHEATH

1/2 COVERING-PROTECTIVE (10 Foot)

2шт.

4

700113360

FLEXIBLE SHEATH

1/4 COVERING-PROTECTIVE (10 Foot)

10шт.

5

700706279

COUPLING, QUICK, FEM

COUPLER-SNAP ON

2шт.

6

700711751

CLAMP

2шт.

7

700123462

HARNESS

-RIGHT SIDE

1шт.

8

700706543

3 WAY CONNECTION

STUD-TEE

1шт.

9

700706542

3 WAY CONNECTION

NIPPLE-TEE

1шт.

10

700706541

COPPER WASHER

GASKET-TEE

1шт.

11

700706540

COPPER WASHER

GASKET-PLUG

1шт.

12

700710976

PLUG

-STOP

1шт.

13

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

5шт.

14

1703354

NUT

1/4-20 HFTLN GR/G

5шт.

15

700706276

SMALL PUMP

MULTI-LUBER

1шт.

16

700113361

SUPPORT

-PUMP

1шт.

17

700706277

TUBE NUT

-COMPRESSION 1/4-28

10шт.

18

700710975

PLUG

-1/4-28

2шт.

19

700113353

SUPPORT

1шт.

20

751321

CLAMP

3шт.

21

700113359

TUBE,0.125" OD, 3048 mm Length

TUBING-NYLON (10 Foot)

10шт.

22

700123461

WIRE HARNESS

HARNESS-LEFT SIDE

1шт.
