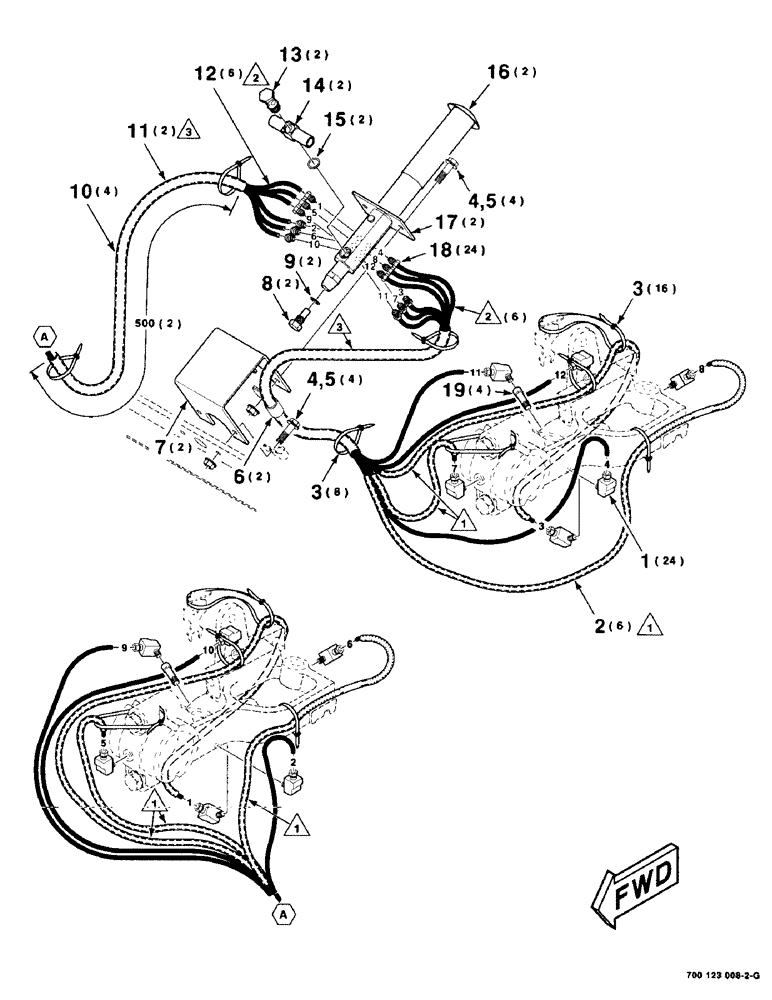

Запчасти Case IH 8575 (6-20) - LUBE PUMP AND LINE ASSEMBLY, KNOTTER (14) - BALE CHAMBER

1

51200288

ELBOW

-MALE (Includes Ref: 18)

24шт.

2

700113360

FLEXIBLE SHEATH

1/4 COVERING-PROTECTIVE (10 Foot)

6шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

24шт.

4

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

8шт.

5

1703354

NUT

1/4-20 HFTLN GR/G

8шт.

6

700711751

CLAMP

2шт.

7

700113353

SUPPORT

2шт.

8

700706539

PLUG

-STOP

2шт.

9

700706540

COPPER WASHER

GASKET-PLUG

2шт.

10

700123460

WIRE HARNESS

HARNESS-KNOTTER

4шт.

11

700123362

FLEXIBLE SHEATH

1/2 COVERING-PROTECTIVE (10.6 Foot)

2шт.

12

700113359

TUBE,0.125" OD, 3048 mm Length

TUBING-NYLON (10 Foot)

6шт.

13

700706543

3 WAY CONNECTION

STUD-TEE

2шт.

14

700706542

3 WAY CONNECTION

NIPPLE-TEE

2шт.

15

700706541

COPPER WASHER

GASKET-TEE

2шт.

16

700706276

SMALL PUMP

MULTI-LUBER

2шт.

17

700113361

SUPPORT

PUMP-SUPPORT

2шт.

18

700706277

TUBE NUT

-COMPRESSION

24шт.

19

700706280

HYD CONNECTOR

EXTENSION-ZERK

4шт.
