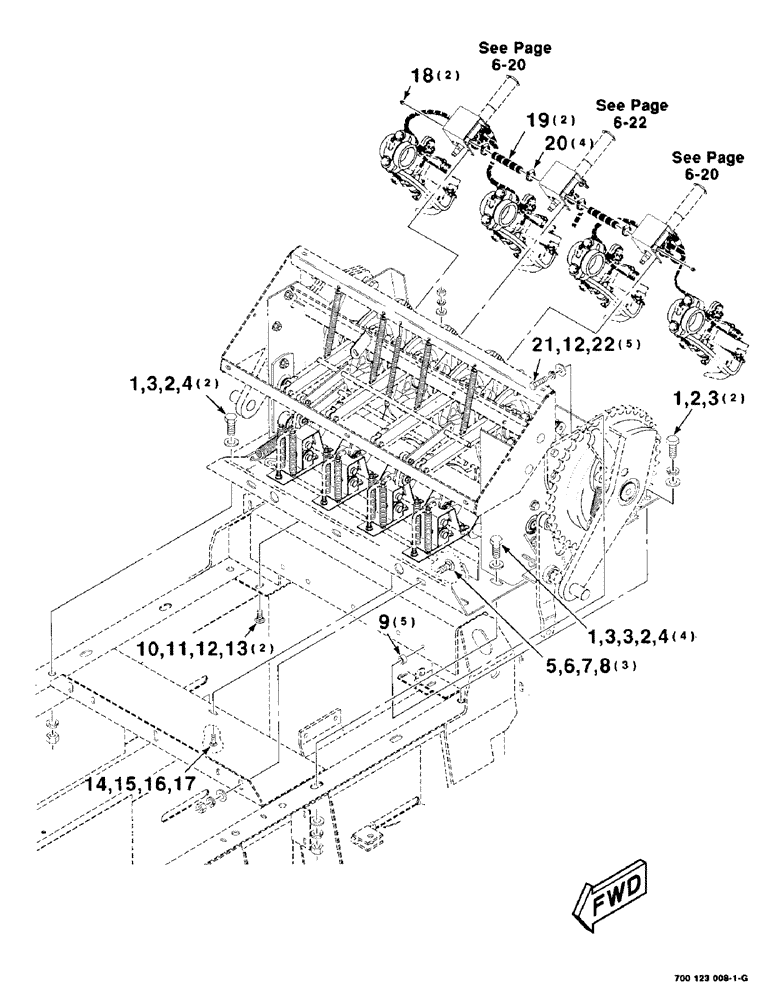

Запчасти Case IH 8575 (6-18) - KNOTTER LUBE ASSEMBLY, CENTRALIZED (14) - BALE CHAMBER

1

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

8шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

12шт.

4

425-1012

NUT,3/4"-10, G5

3/4-10 H

6шт.

5

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 RHSNB

3шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

425-1010

NUT,5/8"-11, G5

3шт.

9

6591614

SPACER,14.27mm ID x 23.01mm OD x 13mm L

5шт.

10

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

11

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 PIPE PLUG

2шт.

19

526602R2

HYDRAULIC HOSE,0.55" ID x 12.00"

0.55" ID x 12.00"

2шт.

20

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

4шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

22

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

5шт.
