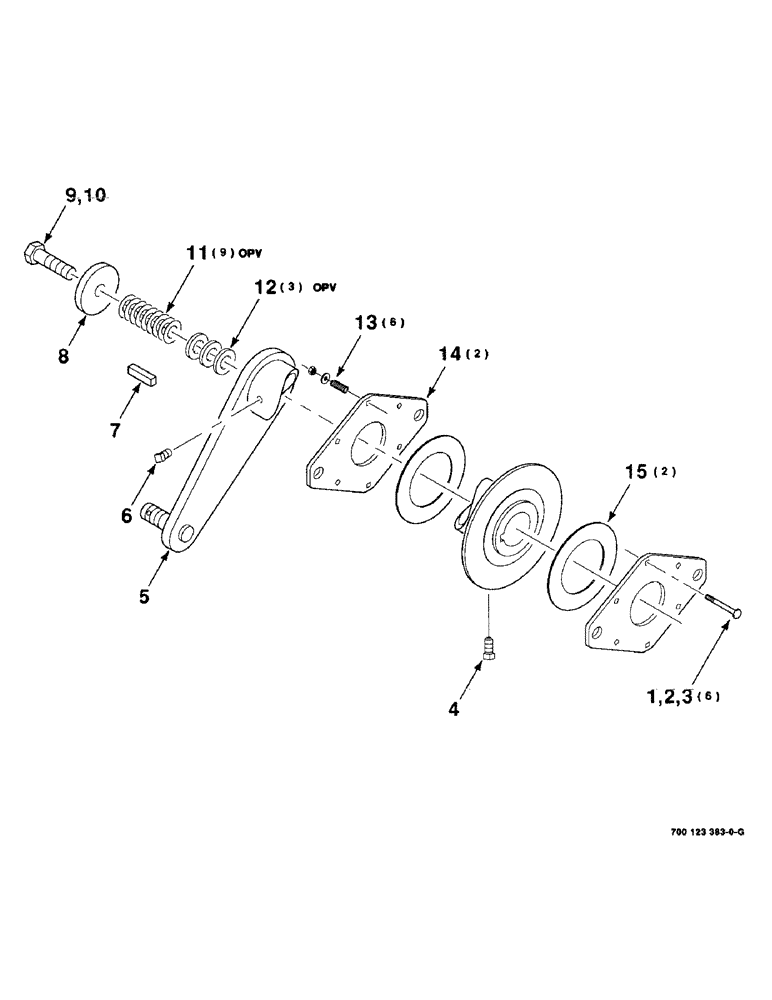

Запчасти Case IH 8575 (6-14) - KNOTTER BRAKE ASSEMBLY (14) - BALE CHAMBER

1

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

6шт.

2

495-21044

WASHER,3/8"

6шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

6шт.

4

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2-13 X 3/4 CPSQHSS

1шт.

5

700123384

ARM

WA-RIGHT

1шт.

6

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

1/2-13 X 1 CPSQHSS

1шт.

7

61879

KEY

1/2 X 1/2 X 2-1/2

1шт.

8

6561351

CAP WASHER

1шт.

9

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

6553275

SHIM

-COUNTERSHAFT

9шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

13

58644

SPRING

-COMPRESSION

6шт.

14

6578868

LARGE PLATE

PLATE-PRESSURE

2шт.

15

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC-CLUTCH

2шт.
