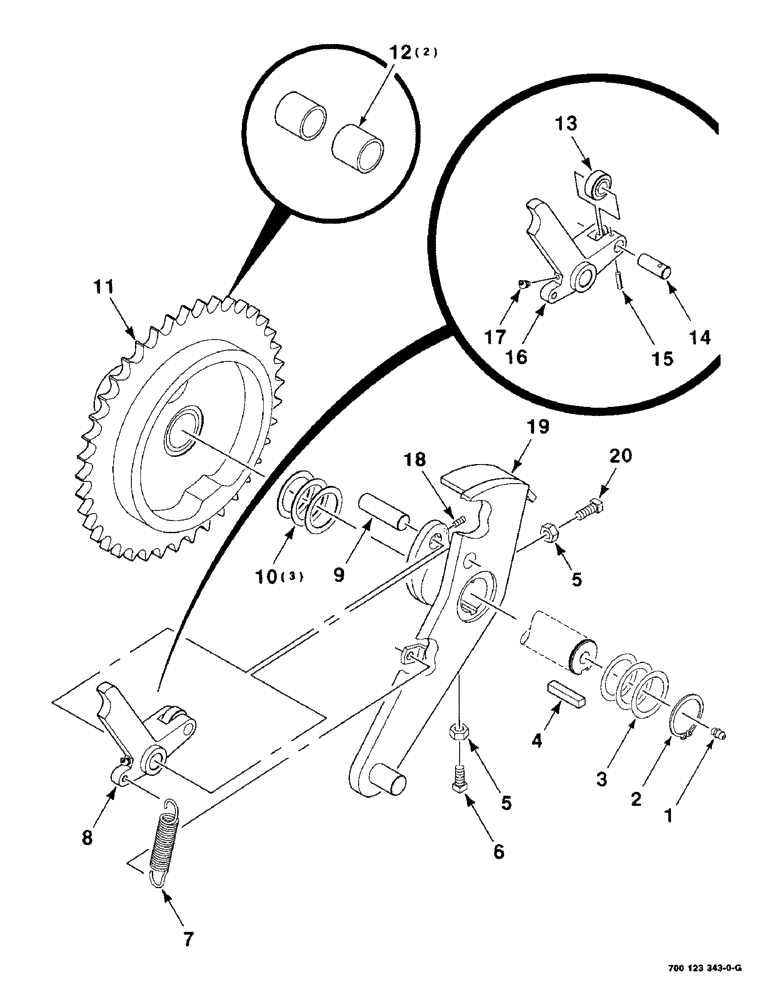

Запчасти Case IH 8575 (6-12) - KNOTTER DRIVE CLUTCH ASSEMBLY (14) - BALE CHAMBER

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 STRAIGHT ZERK

1шт.

2

101-11215

SNAP RING,#215, 2.026", Ext

RING, SNAP, , Retaining #215, 2.026", Ext

1шт.

3

6523534

SHIM

1шт.

4

61879

KEY

1/2 X 1/2 X 2-1/2 STRAIGHT KEY

1шт.

5

329-148

NUT,Jam, 1/2"-13, G8

1/2-13 HJN GR8 NP

2шт.

6

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

1/2-13 X 1 CPSQHSS NP

1шт.

7

758268

SPRING

-EXTENSION

1шт.

8

700124052

ARM

ASM-CLUTCH (Includes Ref: 13, 14, 15, 16 and 17)

1шт.

9

6523518

SHAFT

-CLUTCH

1шт.

10

6523500

WASHER

BUSHING

3шт.

11

700123343

SPROCKET ASSY.

SPROCKET-CAM, 80-45 (Includes Ref: 19)

1шт.

12

700122883

BRONZE BUSHING

BEARING-BRONZE

2шт.

13

6524623

ROLLER,41.28mm OD x 18.67mm L

1шт.

14

6524649

PIN

SHAFT-CLUTCH

1шт.

15

135-358

GROOVED PIN,1/4" x 1 1/4", Type F

Pin, Grooved, 1/4" x 1 1/4", Type F

1шт.

16

6523526

CLUTCH

ARM-CLUTCH

1шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

18

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16-18 X 3/4 HDPHSSS NP

1шт.

19

700123348

ARM

WA-CLUTCH

1шт.

20

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 X 1-1/4 CPSQHSS NP

1шт.
