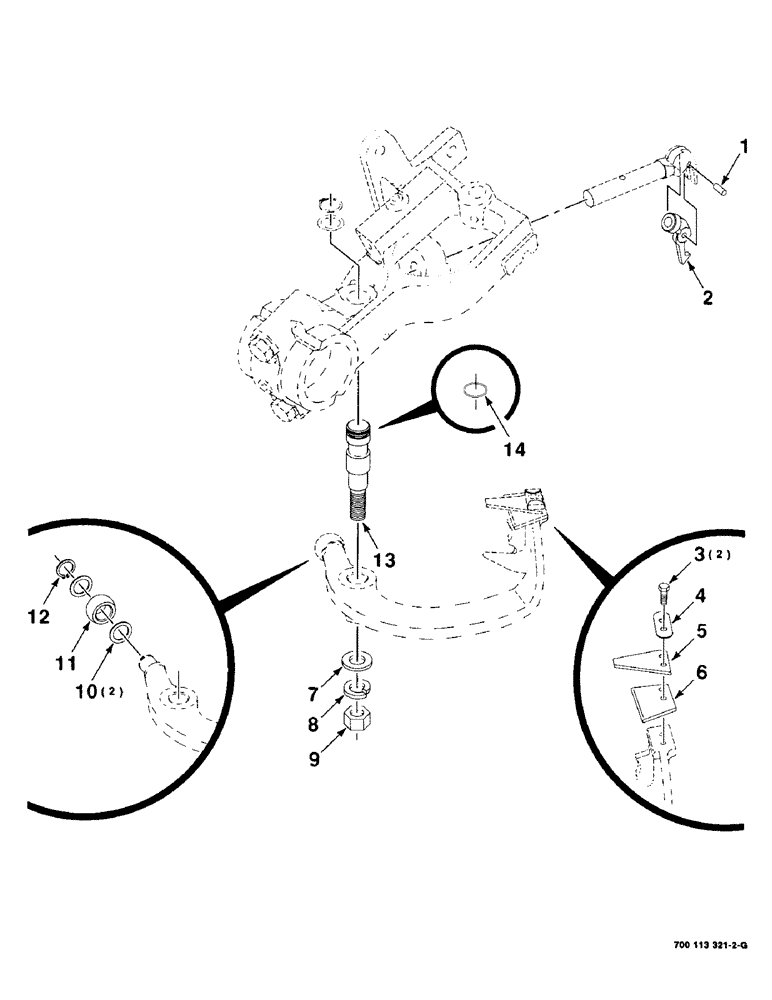

Запчасти Case IH 8575 (6-10) - KNOTTER HEAD ASSEMBLY, (CONT) (14) - BALE CHAMBER

1

19877R1

DOWEL

3/16 X 1/2 DOWEL PIN

1шт.

2

1712835

HOOK

BILL HOOK ASSEMBLY

1шт.

3

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

2шт.

4

6613624

WASHER, LOCK

TAB-LOCKING

1шт.

5

700715627

KNIFE

-TWINE

1шт.

6

700102136

KNIFE

BASE-KNIFE, TWINE

1шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

425-118

NUT,1/2"-20, G5

1/2-20 H

1шт.

10

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

9/16 X 20 GA. MACHINERY BUSHING

2шт.

11

700122799

ROLLER

-SPHERICAL

1шт.

12

7852577

RING, SNAP

RING-RETAINING

1шт.

13

6591580

SHAFT

-TWINE (Includes Ref: 15)

1шт.

14

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.
