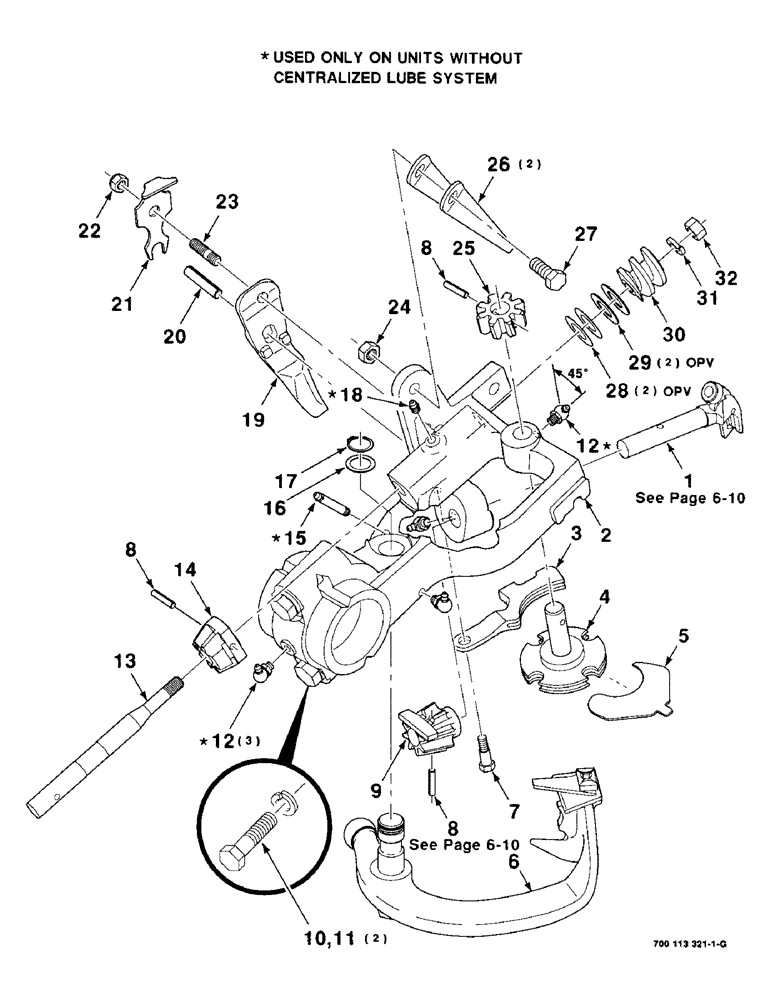

Запчасти Case IH 8575 (6-08) - KNOTTER HEAD ASSEMBLY, 700113321 KNOTTER HEAD ASSEMBLY COMPLETE (14) - BALE CHAMBER

700113321

KNOTTER

HEAD ASSEMBLY COMPLETE

1шт.

1

700700968

KNOTTER

BILL AND HOOK ASSEMBLY

1шт.

2

6591440

ASSEMBLY

FRAME-KNOTTER HEAD (Includes Ref:10 And 11)

1шт.

3

8045148

HOLDER

-TWINE

1шт.

4

1712868

DISC

ASSEMBLY-TWINE

1шт.

5

6523807

CLEANER

-KNOTTER

1шт.

6

700106772

SUPPORTING ARM

TWINE ASSEMBLY-STRIPPER

1шт.

7

702400022

SCREW

5/16-18 SHOULDER SCREW

1шт.

8

435-7614

GROOVED PIN,3/16" x 7/8", Type G

Pin, Grooved, 3/16" x 7/8", Type G

3шт.

9

7894389

PINION

GEAR-BILL HOOK

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

13

6553267

SHORT SHAFT

SHAFT-KNOTTER, WORM

1шт.

14

702700040

WORM GEAR

-BEVEL PINION

1шт.

15

219-417

LUBE NIPPLE,1/4" - 28 NPTF

1/4-28 X 1-5/8 STRAIGHT ZERK

1шт.

16

7852742

WASHER,19.84mm ID x 27.38mm OD x 0.889mm Thk

25/32 MACHINERY BUSHING-SPL

1шт.

17

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19

700113323

CAM

-BILL HOOK

1шт.

20

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, 5/16" x 1", Slotted

1шт.

21

7895733

SPRING

TENSIONER-SPRING

1шт.

22

231-1445

NUT,5/16"-18, GB

5/16-18 LHSN

1шт.

23

6523229

STUD

-MOUNTING

1шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

25

7894454

PINION

-TWINE DISC

1шт.

26

6553259

SPRING

-TWINE

2шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

6553275

SHIM

-COUNTERSHAFT

2шт.

29

7852163

BUSHING

5/8 MACHINERY BUSHING-SPL

2шт.

30

7894413

WORM GEAR

WORM-KNOTTER

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

1шт.
