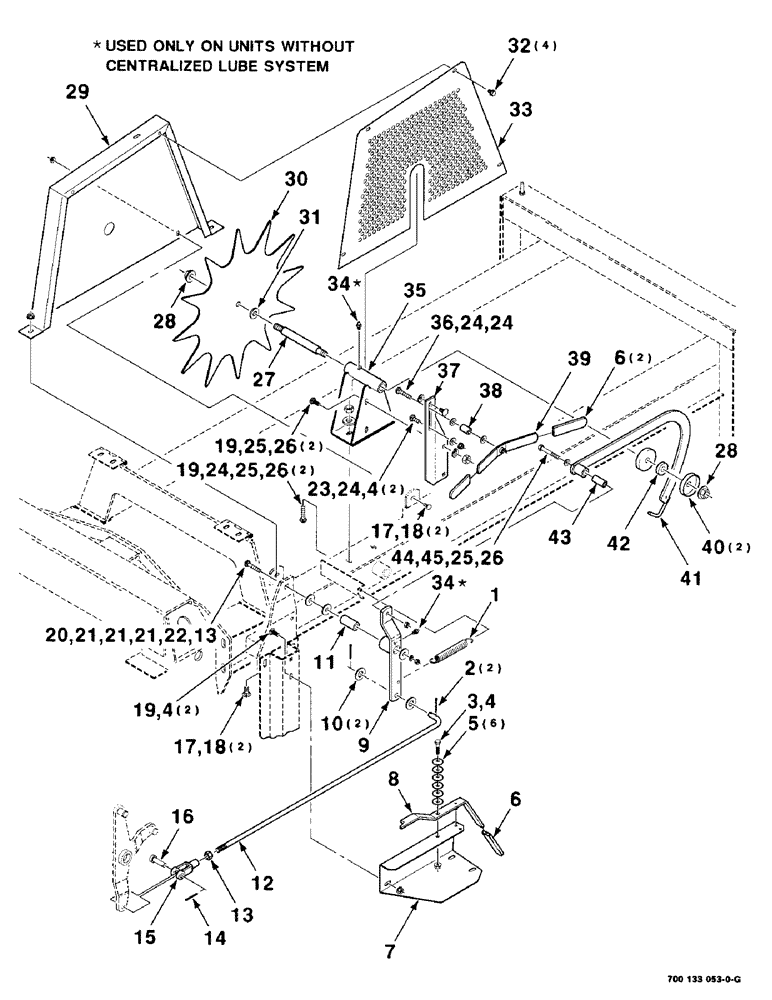

Запчасти Case IH 8575 (5-22) - STARWHEEL ASSEMBLY (13) - FEEDER

1

758441

SPRING

-EXTENSION

1шт.

2

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

5шт.

5

920091951

BELLEVILLE WASHER

-CONICAL

6шт.

6

827360

HANDLE

GRIP

3шт.

7

700129689

SUPPORT

-LEVER

1шт.

8

700129686

LEVER

ASM

1шт.

9

700123852

ARM

WA

1шт.

10

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

11

6621825

SPACER

BUSHING

1шт.

12

700123860

ROD

-STARWHEEL

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

15

066183

CLEVIS

1шт.

16

427-8150

CLEVIS PIN,1/2" x 1 1/2"

1/2X1.500 1.281 HD/HOLE CLEVIS ZND

1шт.

17

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

20

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5

1шт.

21

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

3шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

23

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

24

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

25

492-11038

LOCK WASHER,3/8"

5шт.

26

425-106

NUT,3/8"-16, Cl 5

5шт.

27

700123855

SHAFT

-STARWHEEL

1шт.

28

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

29

700133189

SHIELD

WA-STARWHEEL

1шт.

30

700123856

SPROCKET ASSY.

STARWHEEL

1шт.

31

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

33

700133188

SHIELD

COVER-STARWHEEL

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

2шт.

35

6530265

BRACKET

WA-STARWHEEL

1шт.

36

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 RHSNB

1шт.

37

700123859

SUPPORT

1шт.

38

6229298

SPACER

BUSHING

1шт.

39

700123991

LEVER

ASSEMBLY

1шт.

40

700123850

SHIELD

-WHEEL

2шт.

41

700123857

ARM

WA-TRIP

1шт.

42

6530489

HUB

SPACER

1шт.

43

700109003

BUSHING

1шт.

44

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

45

495-21044

WASHER,3/8"

1шт.
