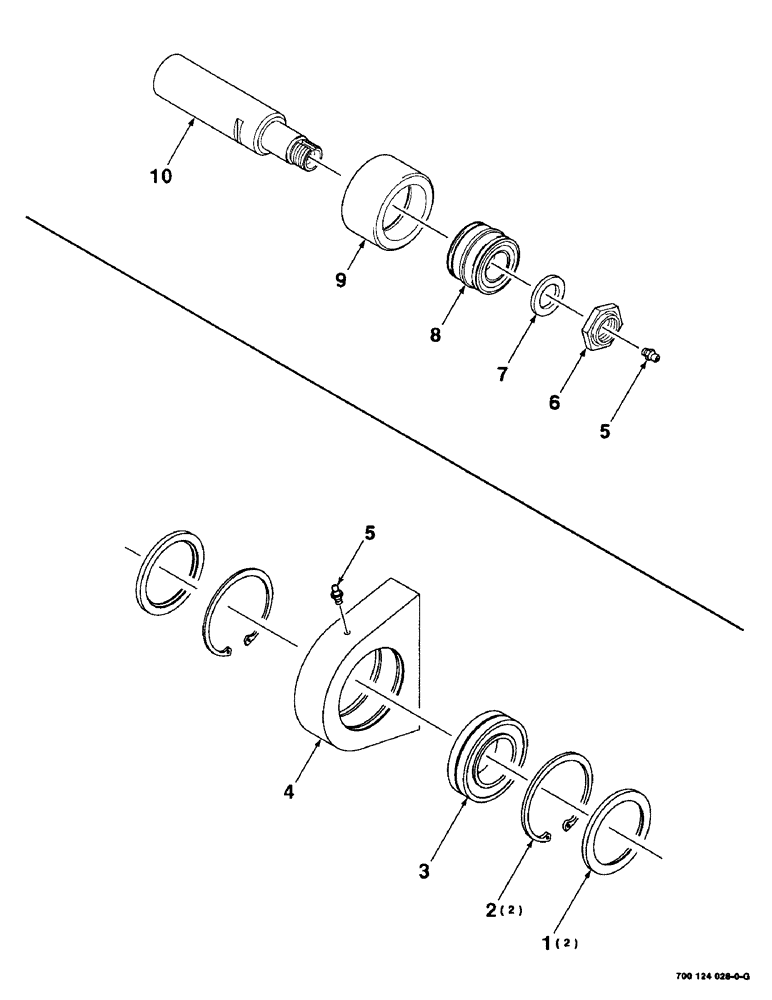

Запчасти Case IH 8575 (5-20) - PLUNGER CAM AND CRANK ARM BEARING ASSEMBLY (13) - FEEDER

1

8744054

SEAL

2шт.

2

100-21393

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

3

8051005

ROLLER BEARING,55mm ID x 100mm OD x 25mm W

BEARING-ROLLER, SPHERICAL

1шт.

4

700123121

BEARING HOUSING

HOUSING-BEARING

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

6

700710680

NUT

7/8-20 NUT-STAKE

1шт.

7

495-81055

WASHER,29/32" x 1 3/8" x .134"

7/8 X 10 GAUGE NRMB

1шт.

8

700710419

BEARING ASSY,25.4mm ID x 50.29mm OD x 31.62mm W

BEARING ASSEMBLY

1шт.

9

700123180

ROLLER,70.13mm OD x 38mm L

1шт.

10

700124029

SHAFT

1шт.
