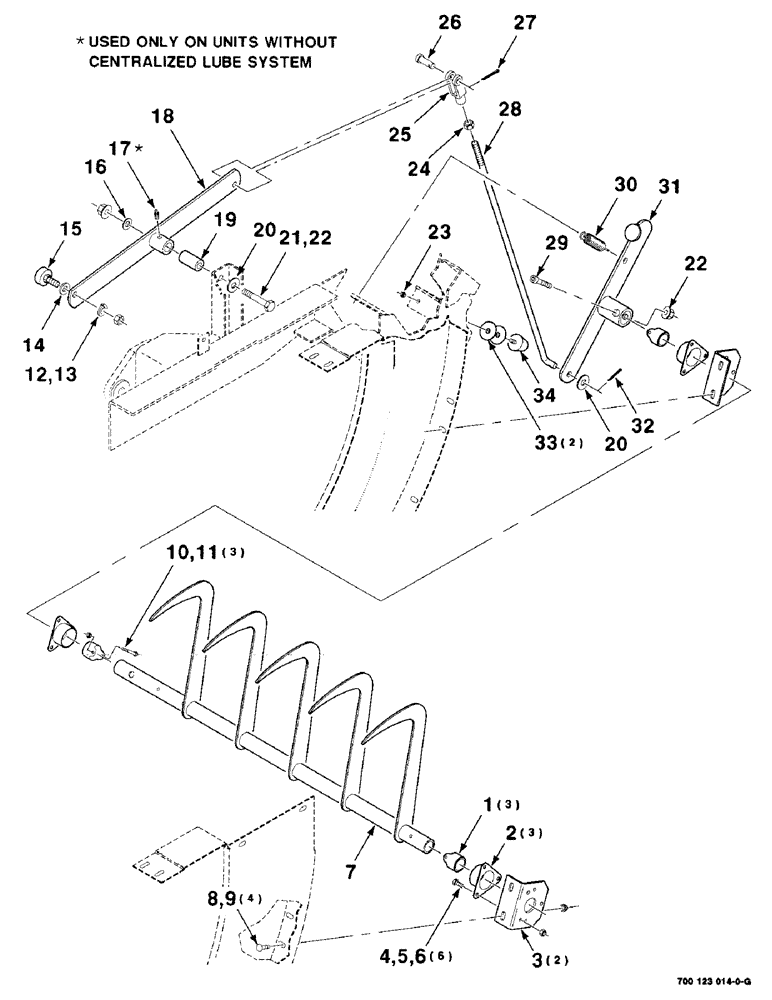

Запчасти Case IH 8575 (5-16) - HOLDING FINGER ASSEMBLY (13) - FEEDER

1

6105159

NYLON BEARING,1.75"

BEARING-TINE

3шт.

2

700119832

HOUSING

-BEARING

3шт.

3

6845507

BRACKET

-MOUNTING

2шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

425-105

NUT,5/16"-18, G5

6шт.

7

700123465

FINGER

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

3шт.

11

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

3шт.

12

425-118

NUT,1/2"-20, G5

1/2-20 H

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GAUGE NRMB

1шт.

15

700705612

CAM FOLLOWER

BEARING-CAM

1шт.

16

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

1шт.

18

700123467

LEVER

1шт.

19

6799654

SPACER

BUSHING

1шт.

20

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

23

230-4715

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

25

66183

SHAFT

1шт.

26

427-8150

CLEVIS PIN,1/2" x 1 1/2"

1/2X1.500 1.281 HD/HOLE CLEVIS ZND

1шт.

27

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

28

700123470

ROD

-CONNECTING

1шт.

29

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS SPL

1шт.

30

700714987

SPRING

-EXTENSION

1шт.

31

700123488

ARM

WA

1шт.

32

62224

PIN, SPLIT (COTTER)

3/16 X 1 COTTER PIN

1шт.

33

700710049

WASHER

3/8 FENDER WASHER

2шт.

34

827568

BUMPER

-RUBBER

1шт.
