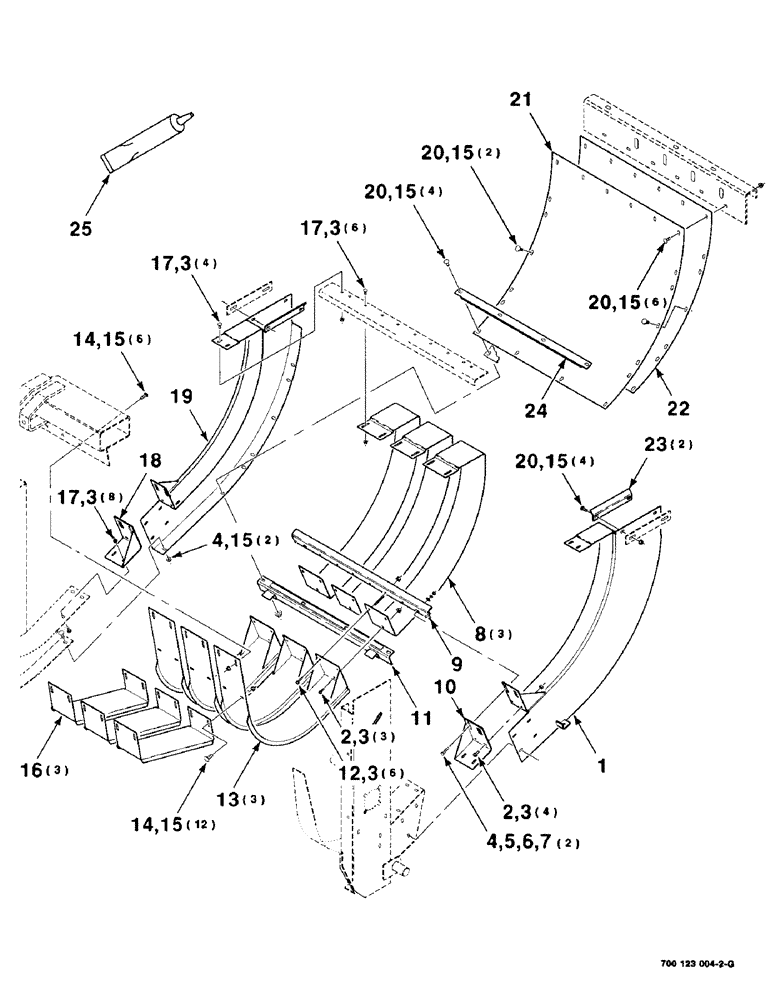

Запчасти Case IH 8575 (5-12) - FEEDER CHUTE ASSEMBLY (13) - FEEDER

1

700123401

PANEL

WA-LEFT

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

7шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

31шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

700123409

STRAP

PANEL

3шт.

9

700123412

ANGLE

WA

1шт.

10

700112825

ANGLE

WA-LEFT

1шт.

11

700123415

SUPPORT

WA

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

13

700123410

CURTAIN

WRAPPER WA

3шт.

14

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

18шт.

15

231-5146

FLANGE NUT,3/8"-16

36шт.

16

700123388

EXTENSION

-WRAPPER

3шт.

17

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

18шт.

18

700112826

ANGLE

WA-RIGHT

1шт.

19

700123402

PANEL

WA-RIGHT

1шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

16шт.

21

700710943

PANEL

LINER, REAR

1шт.

22

700123400

PANEL

-REAR

1шт.

23

700123417

ANGLE

2шт.

24

700123387

ANGLE

1шт.

25

700707823

SEALANT

-305 ml / 10.3 OZ

1шт.
