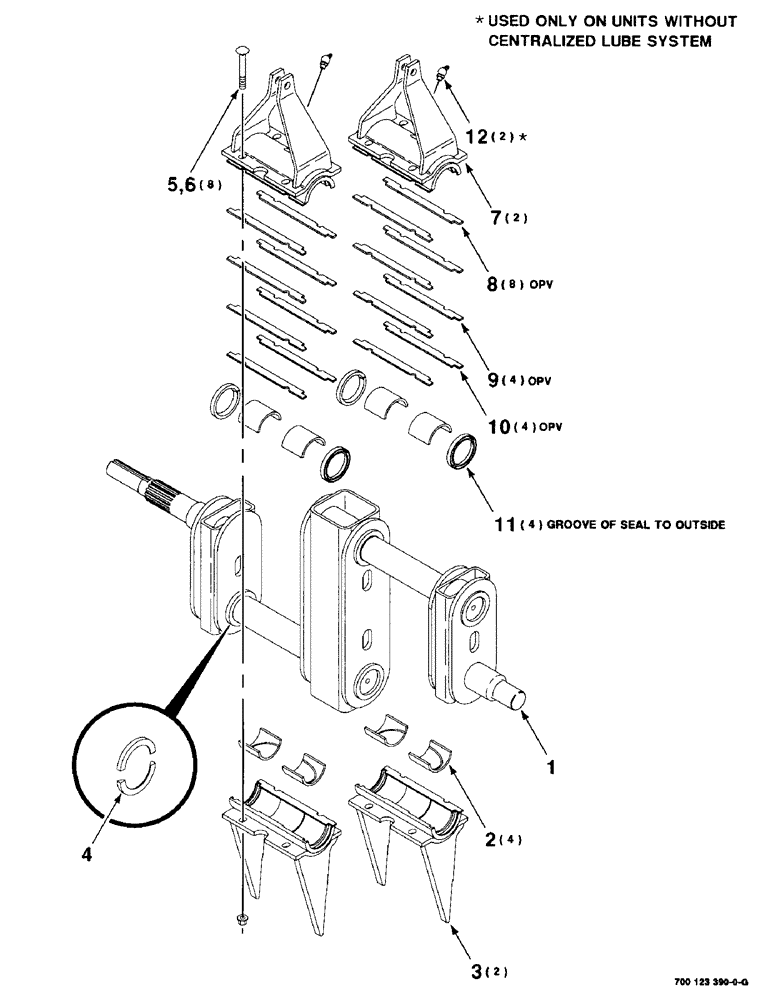

Запчасти Case IH 8575 (5-10) - CRANK ASSEMBLY (13) - FEEDER

1

700123391

CRANK

WA

1шт.

2

700706131

BEARING SET,60.15mm ID x 70.12mm OD x 60mm L

BEARING (PAIR)

4шт.

3

700112787

FINGER

WA

2шт.

4

700122670

KIT

SPLIT RING KIT (Includes 12 Halves)

1шт.

5

433-860

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 X 3-3/4 RHSNB

8шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

7

700112817

SUPPORT

ARM WA

2шт.

8

700706850

SHIM

-0.51/.020

8шт.

9

700706133

SHIM

-0.25/.010

4шт.

10

700706134

SHIM

-0.13/.005

4шт.

11

700706096

SEAL

4шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 45 DEGREE ZERK, SPECIAL

2шт.
