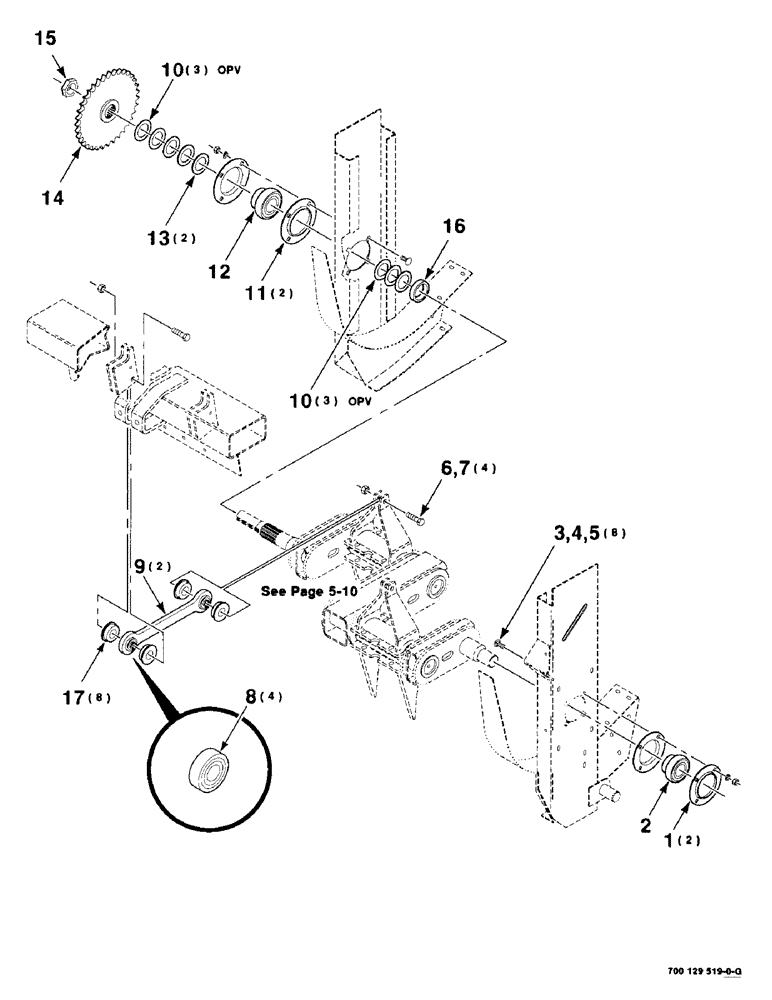

Запчасти Case IH 8575 (5-08) - CRANK DRIVE AND MOUNTING ASSEMBLY (13) - FEEDER

1

50583

FLANGED BEARING

-BEARING

2шт.

2

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

BEARING-SPHERICAL

1шт.

3

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

6

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

4шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING-CYLINDRICAL

4шт.

9

700124036

LINK CONROD

LINK ASSEMBLY (Includes Ref: 8)

2шт.

10

52548

SPECIAL WASHER

2 X 14 GAUGE NRMB

6шт.

11

714360

FLANGED BEARING

FLANGE-BEARING

2шт.

12

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING-SPHERICAL

1шт.

13

740407

BRUSH, COMMUTATOR

2 X 10 GAUGE NRMB

2шт.

14

700123418

SPROCKET ASSY.

SPROCKET WA-80C35 TOOTH

1шт.

15

700113661

NUT

1-5/8-12 STAKE NUT

1шт.

16

700113666

SPACER

1шт.

17

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

-BEARING

8шт.
