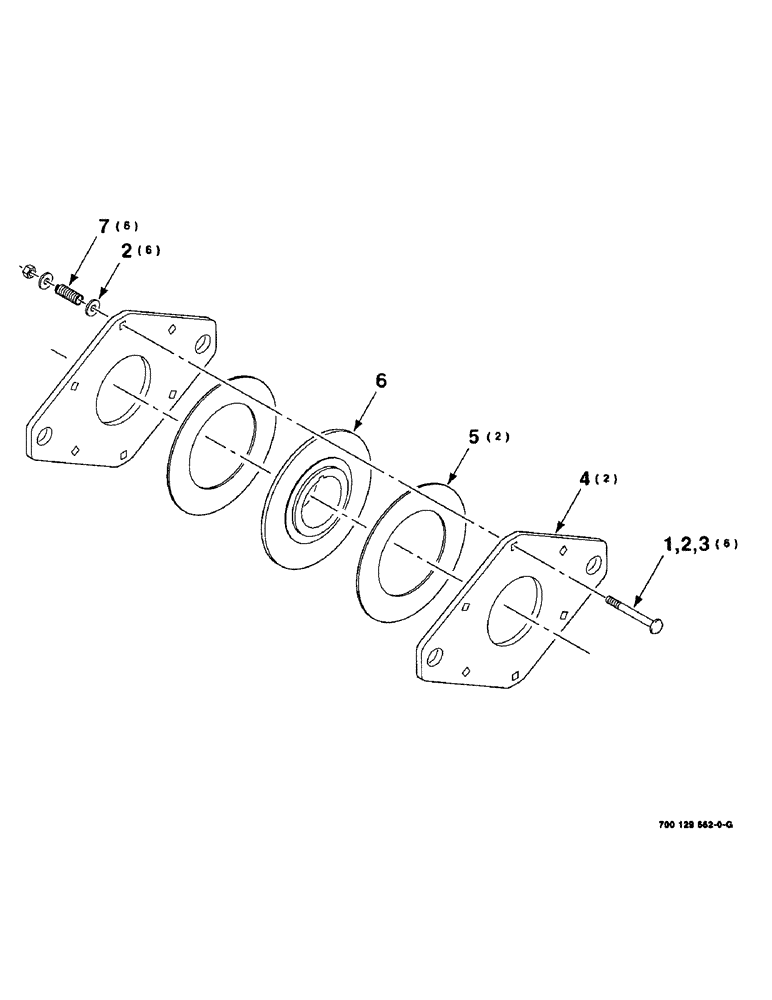

Запчасти Case IH 8575 (5-06) - STUFFER CLUTCH ASSEMBLY (13) - FEEDER

1

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

6шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

6шт.

4

6578868

LARGE PLATE

PLATE-PRESSURE

2шт.

5

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC-CLUTCH

2шт.

6

700129663

HUB

WA

1шт.

7

758011

SPRING

-COMPRESSION

6шт.
