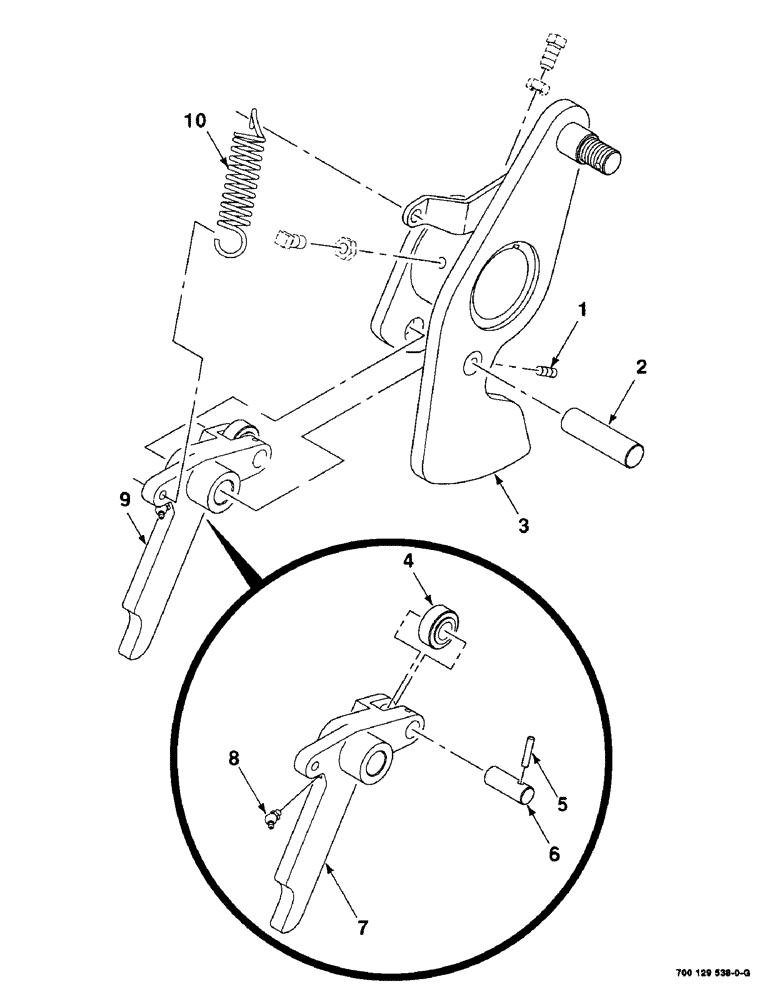

Запчасти Case IH 8575 (5-04) - CLUTCH DOG ASSEMBLY (13) - FEEDER

1

069526

SCREW

3/8-16 X 3/4 HDPHSSS NP

1шт.

2

700129542

SHAFT

-CLUTCH

1шт.

3

700129539

LEVER

ARM-CLUTCH

1шт.

4

6524623

ROLLER,41.28mm OD x 18.67mm L

1шт.

5

135-358

GROOVED PIN,1/4" x 1 1/4", Type F

Pin, Grooved, 1/4" x 1 1/4", Type F

1шт.

6

6524649

PIN

SHAFT-CLUTCH

1шт.

7

700123277

ARM

-CLUTCH

1шт.

8

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

9

700129484

ARM

ASM - CLUTCH (Includes Ref: 4, 5, 6, 7 and 8)

1шт.

10

758268

SPRING

-EXTENSION

1шт.
