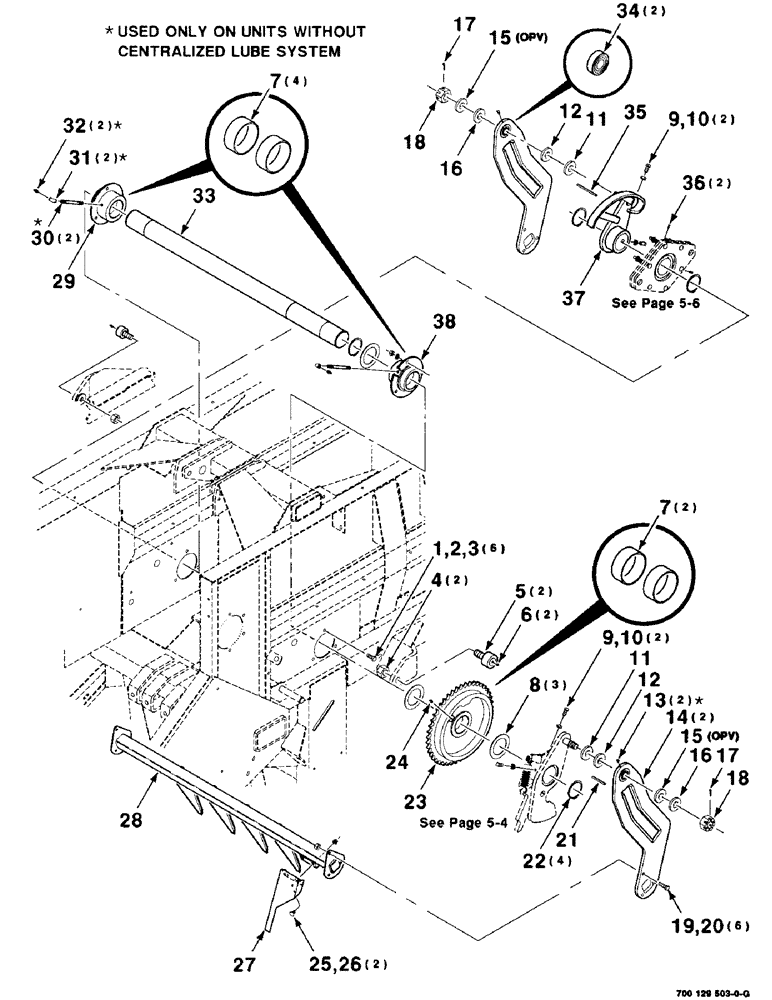

Запчасти Case IH 8575 (5-02) - CHARGE ASSEMBLY (13) - FEEDER

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

4

425-1116

NUT,1"-14, G5

1-14 H GR 5 P

2шт.

5

700711707

CAM

BEARING-CAM FOLLOWER

2шт.

6

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

2шт.

7

700129529

BRONZE BUSHING

BUSHING-BRONZE

6шт.

8

700123293

WASHER

3шт.

9

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

1/2-13 X 1 CPSQHSS

4шт.

10

329-148

NUT,Jam, 1/2"-13, G8

1/2-13 HJN GR2

4шт.

11

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

2шт.

12

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

13

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

14

700129548

ARM ASSY.

ARM ASM.-CAM (Includes Ref: 34)

2шт.

15

52258

BUSHING

1 X 14 GAUGE NRMB

2шт.

16

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 X 10 GAUGE NRMB

2шт.

17

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

18

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

2шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

21

761312

KEY

5/16 X 5/16 X 2-1/2 KEY

1шт.

22

7852767

RING

-RETAINING

4шт.

23

700129537

SPROCKET ASSY.

SPROCKET ASM. (Includes Ref: 7)

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

25

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

26

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

27

700129559

FINGER

1шт.

28

700129555

FINGER

WA-STUFFER

1шт.

29

700129534

SUPPORT

ASSEMBLY-RIGHT (Includes Ref: 7)

1шт.

30

8746042

LUBE NIPPLE

1/8-27 X 5-1/2 NIPPLE

2шт.

31

217-1050

90 ELBOW,1/8" - 27 NPTF Female

1/8 X 90 DEGREE ELBOW

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 STRAIGHT ZERK

2шт.

33

700129530

SHAFT ASSY.

SHAFT-STUFFER

1шт.

34

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING

2шт.

35

6201404

KEY

5/16 X 5/16 X 3-3/4 KEY

1шт.

36

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CPSQHSS

2шт.

37

700129590

CRANK

WA-RIGHT

1шт.

38

700129533

SHAFT ASSY.

SUPPORT ASSEMBLY-LEFT (Includes Ref: 7)

1шт.
