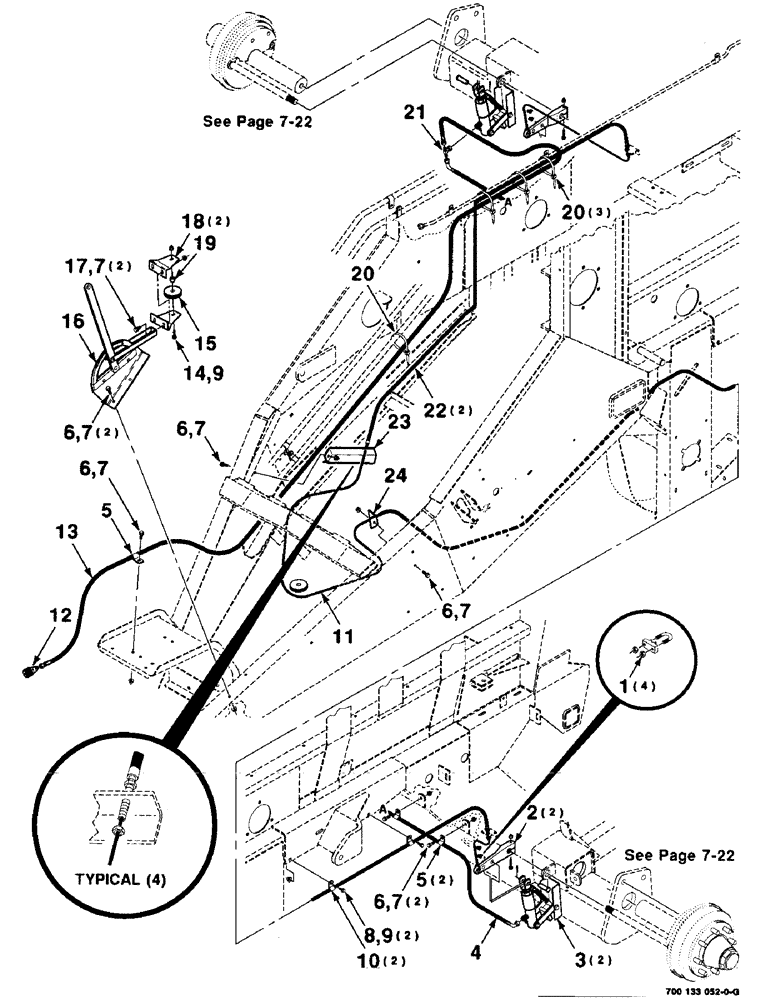

Запчасти Case IH 8575 (7-26) - BRAKE CONTROL ASSEMBLY (12) - MAIN FRAME

1

700714994

CLAMP

-HANDBRAKE CABLE

4шт.

2

700714992

LEVER

-BRAKE CAM

2шт.

3

700714990

ACTUATOR

RAM ASSEMBLY-BRAKE (Includes Pins)

2шт.

4

700715005

HOSE

ASSEMBLY

1шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

3шт.

6

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

7шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

10

700708090

CLAMP

-LINE

2шт.

11

700714993

CABLE

WIRE ROPE-HANDBRAKE

1шт.

12

700714996

COUPLING

-TRAILER

1шт.

13

700715004

HOSE

ASSEMBLY

1шт.

14

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

15

700120328

PULLEY

1шт.

16

700714991

LEVER

ASM-HANDBRAKE

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

18

700133077

SUPPORT

-PULLEY

2шт.

19

700119414

SPACER

BUSHING-SPACER

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

21

700715006

3 WAY CONNECTION

TEE-STRAIGHT, BSP

1шт.

22

700715204

FLEXIBLE SHEATH

COVER-HANDBRAKE CABLE

2шт.

23

700133073

SUPPORT

-ANGLE

1шт.

24

700133076

SUPPORT

-CABLE

1шт.
