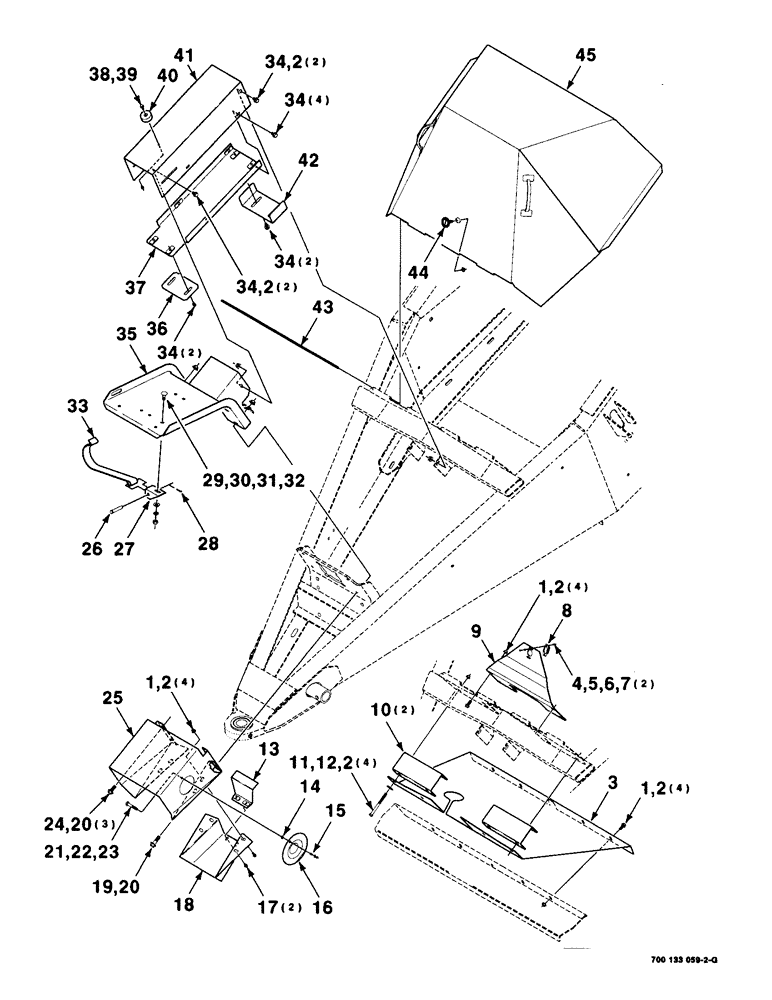

Запчасти Case IH 8575 (7-24) - DRIVE LINE SHIELD ASSEMBLIES (12) - MAIN FRAME

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

16шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

24шт.

3

700133095

SHIELD

-FLYWHEEL

1шт.

4

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR 60M

2шт.

5

195-513

WASHER,#10

PLAIN WASHER #10

2шт.

6

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

225-14110

NUT,#10-24

2шт.

8

700714529

SOCKET/RECEPTACLE

RECEPTACLE

1шт.

9

700133084

SUPPORT

-LATCH

1шт.

10

700133097

SUPPORT

-SHIELD

2шт.

11

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16-18 X 3-1/2

4шт.

12

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

13

700133088

SHIELD

WA-REAR

1шт.

14

700709866

WASHER

-WASHER, CAMLOC

1шт.

15

CAS758342

SPRING

-COMPRESSION

1шт.

16

700133083

SHIELD

2шт.

17

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

700133089

SHIELD

1шт.

19

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

1шт.

20

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

21

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

22

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

23

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

24

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

25

700133094

SHIELD

1шт.

26

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PIN

1шт.

27

700123830

CHANNEL

-SUPPORT

1шт.

28

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

30

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

33

700123831

SUPPORT

-STRAP

1шт.

34

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

35

700113640

SUPPORT

WA

1шт.

36

700133085

SHIELD

-FRONT

1шт.

37

700133086

SHIELD

WA-LOWER

1шт.

38

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

1шт.

39

1954816C1

LOCK NUT

#12-24 HCLN - SPECIAL

1шт.

40

700708648

BUMPER

1шт.

41

700133093

SHIELD

-PTO

1шт.

42

700133096

SHIELD

1шт.

43

65250

PIN,4.76mm OD x 571.5mm L

-HINGE

1шт.

44

700714528

LATCH

-1/4 TURN

1шт.

45

700133091

SHIELD

WA

1шт.
