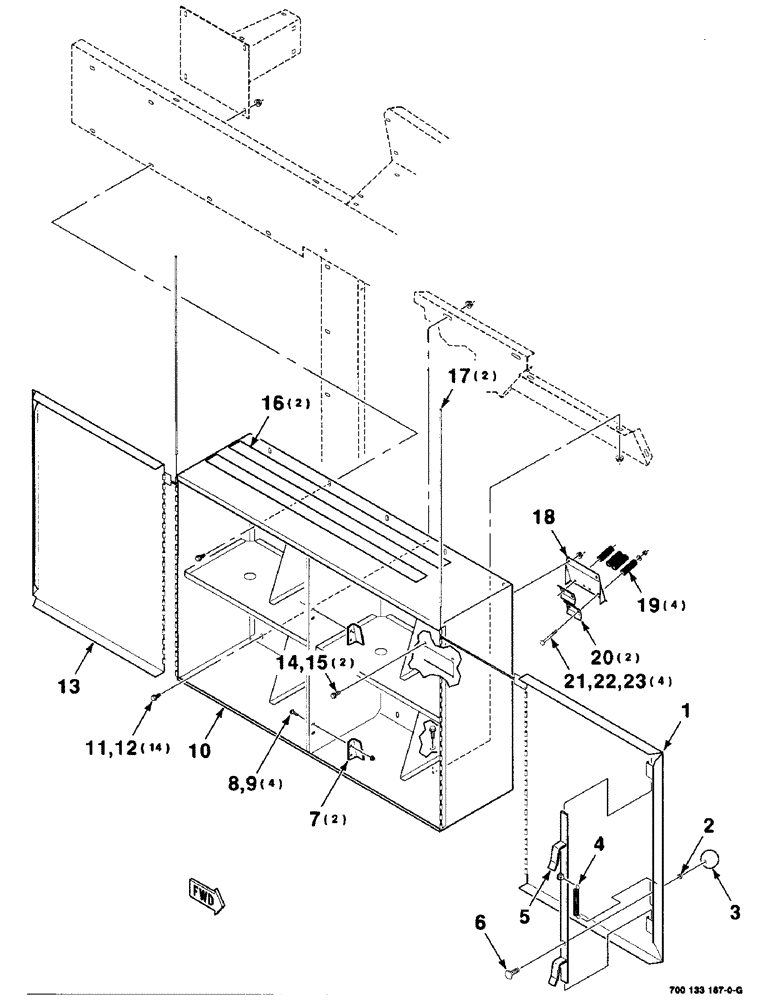

Запчасти Case IH 8575 (7-20) - TWINE BOX ASSEMBLY, RIGHT (12) - MAIN FRAME

1

700133150

DOOR

WA-TWINE BOX (Includes Decal)

1шт.

2

6270854

SPACER

1шт.

3

A23885

KNOB

1шт.

4

58941

SPRING

-EXTENSION

1шт.

5

700123886

LATCH

WA

1шт.

6

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

7

700123889

LATCH

CATCH

2шт.

8

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

700133176

BOX WA-TWINE, RIGHT

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

14шт.

12

231-5146

FLANGE NUT,3/8"-16

14шт.

13

700133151

DOOR

-TWINE BOX (Includes Decal)

1шт.

14

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

16

6849178

WALL

SAFETY WALK (10 FOOT BULK)

2шт.

17

65029

PIN

-HINGE

2шт.

18

700123888

LARGE PLATE

PLATE

1шт.

19

700707677

SPRING

-COMPRESSION

4шт.

20

700123929

CLIP

2шт.

21

26144R1

BOLT

1/4-20 X 2-1/4 RHSNB

4шт.

22

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

23

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.
