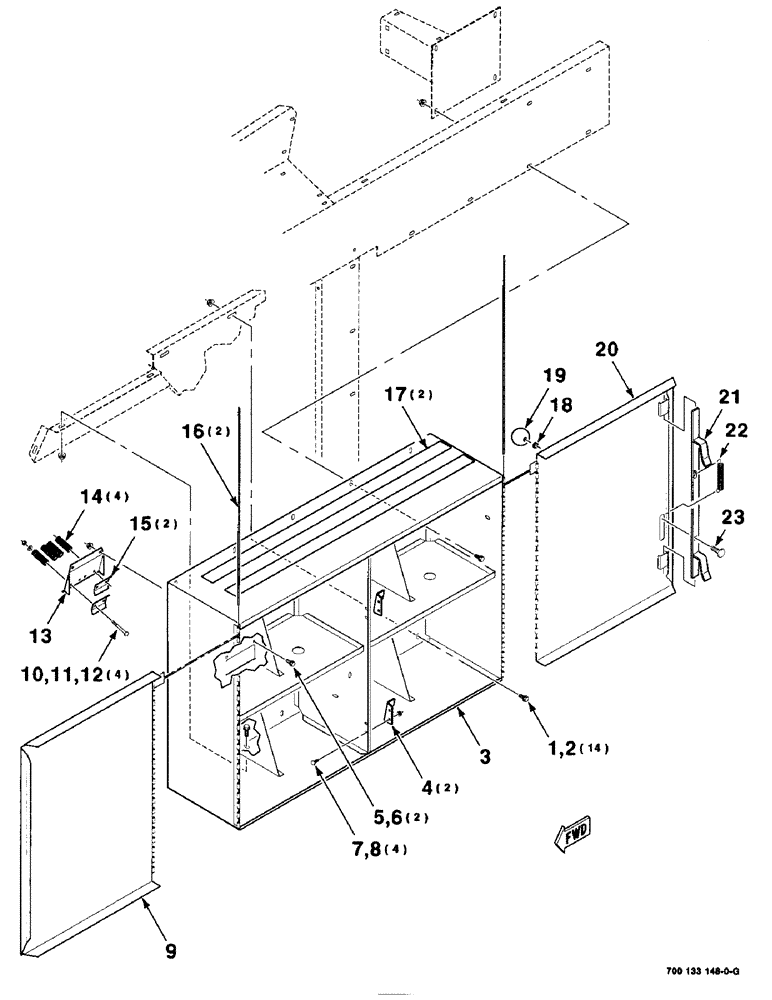

Запчасти Case IH 8575 (7-18) - TWINE BOX ASSEMBLY, LEFT (12) - MAIN FRAME

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

14шт.

2

231-5146

FLANGE NUT,3/8"-16

14шт.

3

700133080

BOX WA-TWINE, LEFT

1шт.

4

700123889

LATCH

CATCH

2шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

7

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

700133151

DOOR

-TWINE BOX (Includes Decal)

1шт.

10

26144R1

BOLT

1/4-20 X 2-1/4 RHSNB

4шт.

11

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

12

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

13

700123888

LARGE PLATE

PLATE

1шт.

14

700707677

SPRING

-COMPRESSION

4шт.

15

700123929

CLIP

2шт.

16

65029

PIN

-HINGE

2шт.

17

6849178

WALL

SAFETY WALK (10 FOOT BULK)

2шт.

18

6270854

SPACER

1шт.

19

A23885

KNOB

1шт.

20

700133150

DOOR

WA (Includes Decal)

1шт.

21

700123886

LATCH

WA

1шт.

22

58941

SPRING

-EXTENSION

1шт.

23

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.
