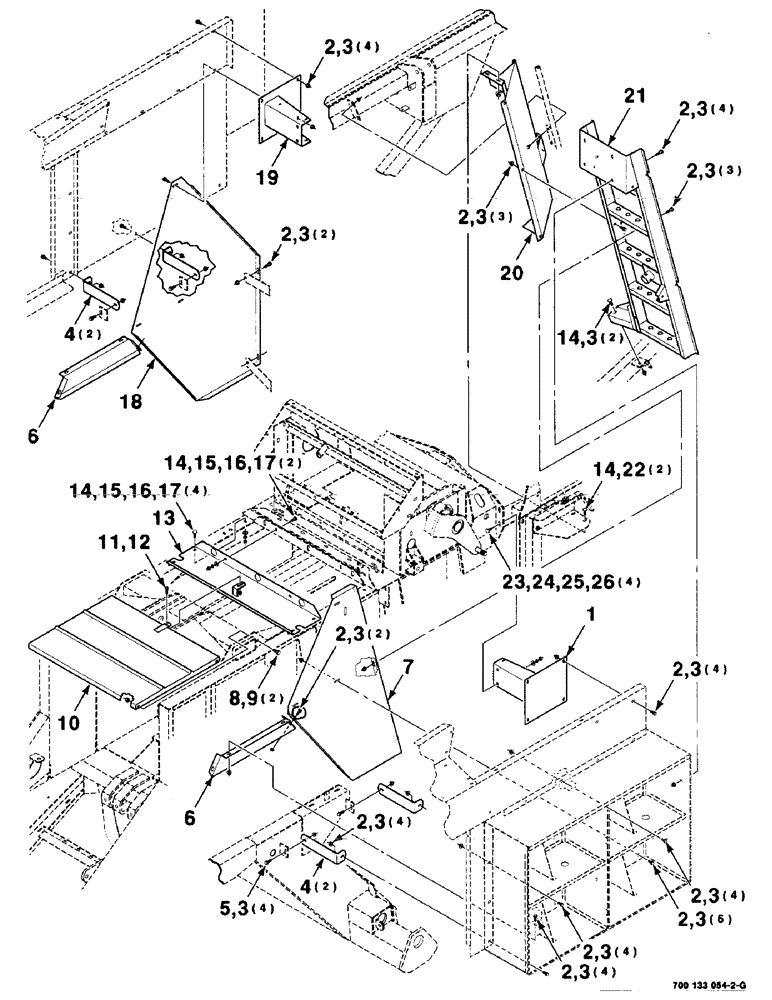

Запчасти Case IH 8575 (7-14) - LADDER, TOP AND SIDE SHIELD ASSEMBLIES (12) - MAIN FRAME

1

700123915

SUPPORT

WA-LEFT

1шт.

2

406-7612

3/8-16 X 3/4 HWHMS

44шт.

3

231-5146

FLANGE NUT,3/8"-16

50шт.

4

700123922

SUPPORT

-MOUNTING

4шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

6

700123928

SHIELD

2шт.

7

700133137

SHIELD

-LEFT

1шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

9

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

10

700133163

LID

WA

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

13

700133161

CHANNEL

WA-TOP

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

10шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

17

425-106

NUT,3/8"-16, Cl 5

6шт.

18

700133138

SHIELD

-RIGHT

1шт.

19

700123916

SUPPORT

WA-RIGHT

1шт.

20

700133139

SHIELD

WA-LADDER

1шт.

21

700133081

LADDER

WA (Includes Reflector and Decal)

1шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

23

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

24

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
