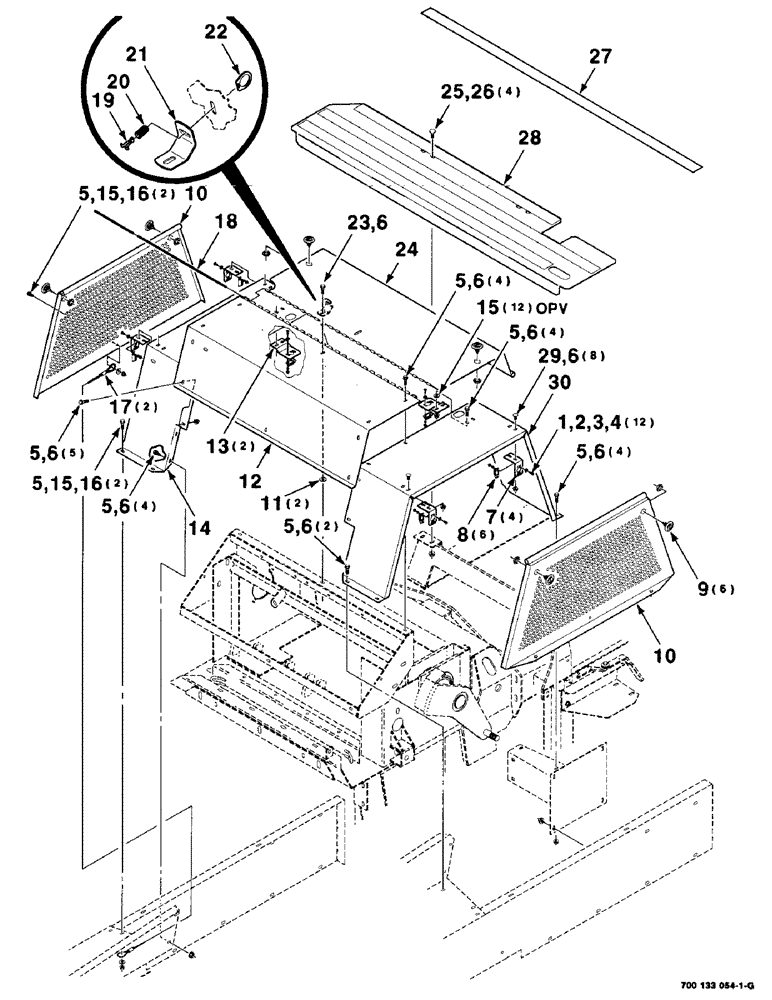

Запчасти Case IH 8575 (7-12) - KNOTTER PLATFORM AND SHIELDS ASSEMBLY (12) - MAIN FRAME

1

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

12шт.

2

195-513

WASHER,#10

PLAIN WASHER #10

12шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

12шт.

4

225-14110

NUT,#10-24

12шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

27шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

32шт.

7

700133164

SUPPORT

-RECEPTACLE

4шт.

8

700714529

SOCKET/RECEPTACLE

RECEPTACLE

6шт.

9

700714528

LATCH

-1/4 TURN (Includes Nut)

6шт.

10

700133155

SHIELD

WA-KNOTTER

2шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

12

700133159

SHIELD

1шт.

13

700133160

SUPPORT

-LATCH

2шт.

14

700133154

SHIELD

-KNOTTER, RIGHT

1шт.

15

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

16шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

17

8021693

CABLE

2шт.

18

6854301

PIN

-HINGE

1шт.

19

7894975

CLIP

1шт.

20

7758212

SPRING

-COMPRESSION

1шт.

21

6564595

STOP

-DOOR

1шт.

22

7894967

HANDLE

1шт.

23

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

24

700133158

SHIELD

-KNOTTER, TOP

1шт.

25

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

26

231-5146

FLANGE NUT,3/8"-16

4шт.

27

6849178

WALL

SAFETY-WALK (10 FOOT)

1шт.

28

700123910

PLATFORM

ASSEMBLY (Includes Safety-Walk)

1шт.

29

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

8шт.

30

700133153

SHIELD

-KNOTTER, LEFT

1шт.
