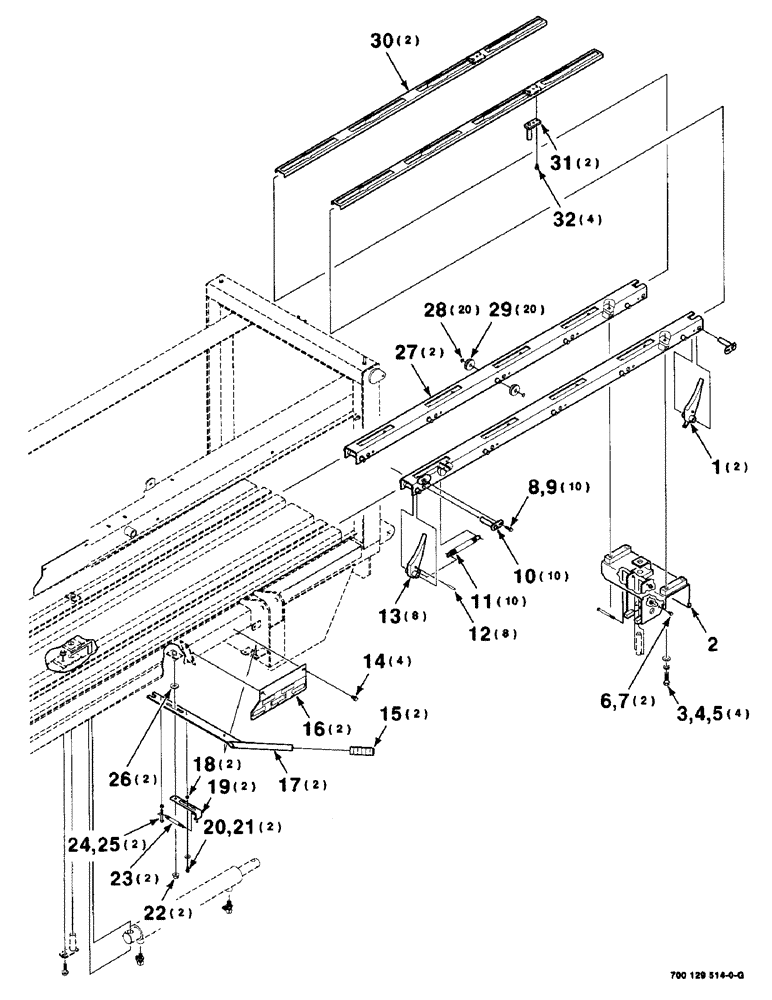

Запчасти Case IH 8575 (7-06) - BALE EJECTOR ASSEMBLY (12) - MAIN FRAME

1

700129695

PLATE ASSY.

HAY DOG WA-EJECTOR

2шт.

2

700129574

FAN

PUSHER WA-EJECTOR

1шт.

3

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

4шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

7

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

10шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

10

700129567

PIN

WA-HAY DOG

10шт.

11

700714166

SPRING

-EXTENSION

10шт.

12

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

8шт.

13

700129571

PLATE ASSY.

HAY DOG WA-EJECTOR

8шт.

14

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

4шт.

15

27342

GRIP

HANDLE GRIP

2шт.

16

700129665

LARGE PLATE

PLATE-DECAL

2шт.

17

700129704

HANDLE

WA

2шт.

18

700127895

SPACER

2шт.

19

700129769

SUPPORT

-SPRING

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

21

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

23

7758915

SPRING

-EXTENSION

2шт.

24

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

2шт.

25

425-104

NUT,1/4"-20, Cl 5

2шт.

26

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

27

700129562

CHANNEL

WA

2шт.

28

103-1162

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

20шт.

29

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

20шт.

30

700129705

CHANNEL

WA

2шт.

31

700129701

PIN

WA

2шт.

32

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

5/16-18 X 3/4 HSFHCS SPL

4шт.
