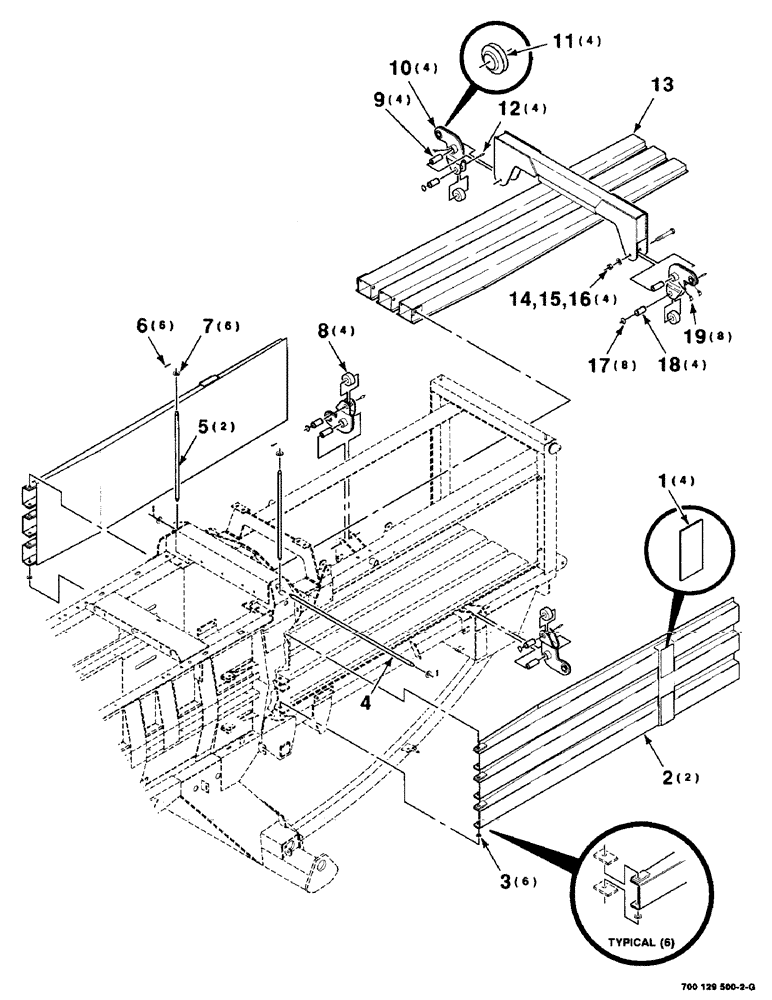

Запчасти Case IH 8575 (7-04) - BALE DENSITY DOORS AND ARMS ASSEMBLY (12) - MAIN FRAME

1

700123706

LARGE PLATE

PLATE

4шт.

2

700123700

DOOR

WA-SIDE (Includes Ref: 1)

2шт.

3

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

6шт.

4

700123710

PIN

-TOP

1шт.

5

700123709

PIN

-SIDE

2шт.

6

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

6шт.

7

705566

WASHER

3/4 HARDENED PLAIN WASHER

6шт.

8

700113614

ROLLER

4шт.

9

700123697

BUSHING

4шт.

10

700123720

CRANK

WA-BELL (Includes Ref: 11)

4шт.

11

700706269

BALL JOINT

BALL-JOINT

4шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

13

700123712

DOOR

WA-UPPER

1шт.

14

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

15

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

16

425-1012

NUT,3/4"-10, G5

3/4-10 H

4шт.

17

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

8шт.

18

700123699

PIN

4шт.

19

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

8шт.
