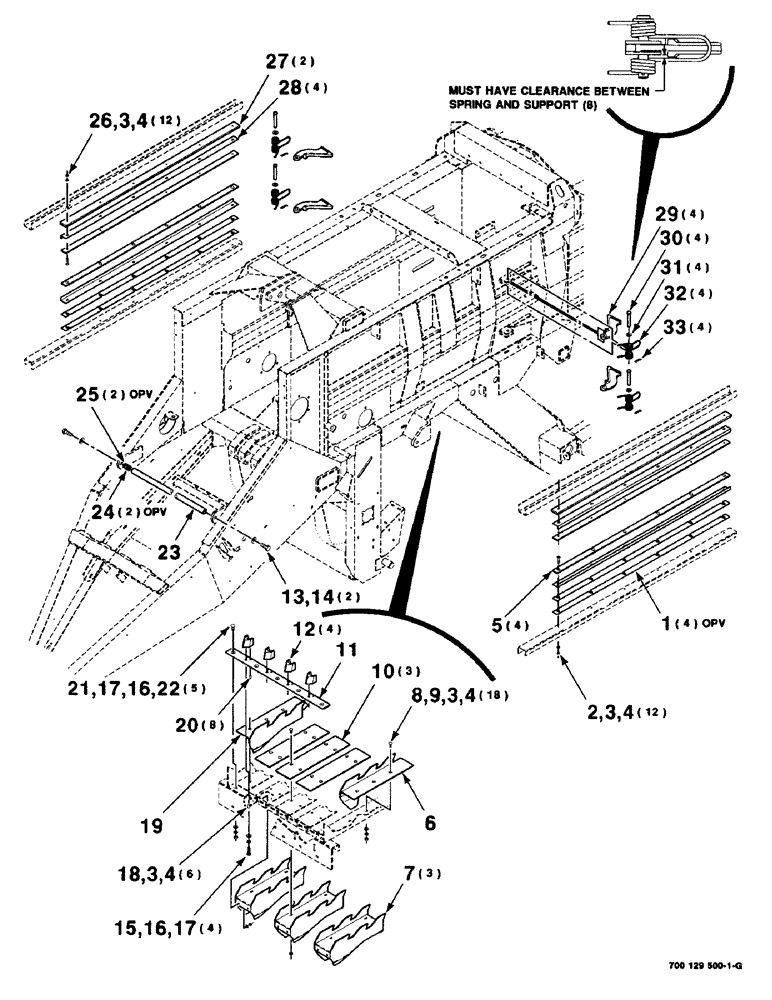

Запчасти Case IH 8575 (7-02) - PLUNGER RAILS, KNIVES AND HAY DOG ASSEMBLIES (12) - MAIN FRAME

1

700123726

SHIM

-0.46 / .018

4шт.

2

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 X 1-1/4 HSFCHCS SPL

12шт.

3

492-11038

LOCK WASHER,3/8"

48шт.

4

425-106

NUT,3/8"-16, Cl 5

48шт.

5

700123724

RAIL

-HARDENED

4шт.

6

700129645

DRIVE DOG

HAY DOG WA-LEFT

1шт.

7

700129640

DRIVE DOG

HAY DOG WA

3шт.

8

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PLOW BOLT

18шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

18шт.

10

700129586

LARGE PLATE

PLATE-WEAR

3шт.

11

700713962

KNIFE,794mm L x 63.5mm W x 7.94mm Thk

1шт.

12

700129647

PROTECTOR

-NEEDLE

4шт.

13

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

14

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

15

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

9шт.

17

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

9шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

19

700129646

DRIVE DOG

HAY DOG WA-RIGHT

1шт.

20

37-1612

DOWEL,3/8" x 3/4"

3/8 X 3/4 DOWEL PIN

8шт.

21

707448

BOLT

1/2-13 X 1-1/2 PLOW BOLT

5шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

23

700123494

SUPPORT

1шт.

24

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

25

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

3/4 X 10 GAUGE NRMB

2шт.

26

164-54

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 3/4"

3/8-16 X 1-3/4 HSFCHCS SPL

12шт.

27

700123725

RAIL

2шт.

28

700123727

ANGLE

-SHIELD

4шт.

29

6529473

DRIVE DOG

HAY DOG

4шт.

30

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

5/8 X 3-3/4 CLEVIS PIN

4шт.

31

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

32

700706376

SPRING

-TORSION

4шт.

33

S120261

PIN

.148 WIRE HAIR PIN COTTER

4шт.
