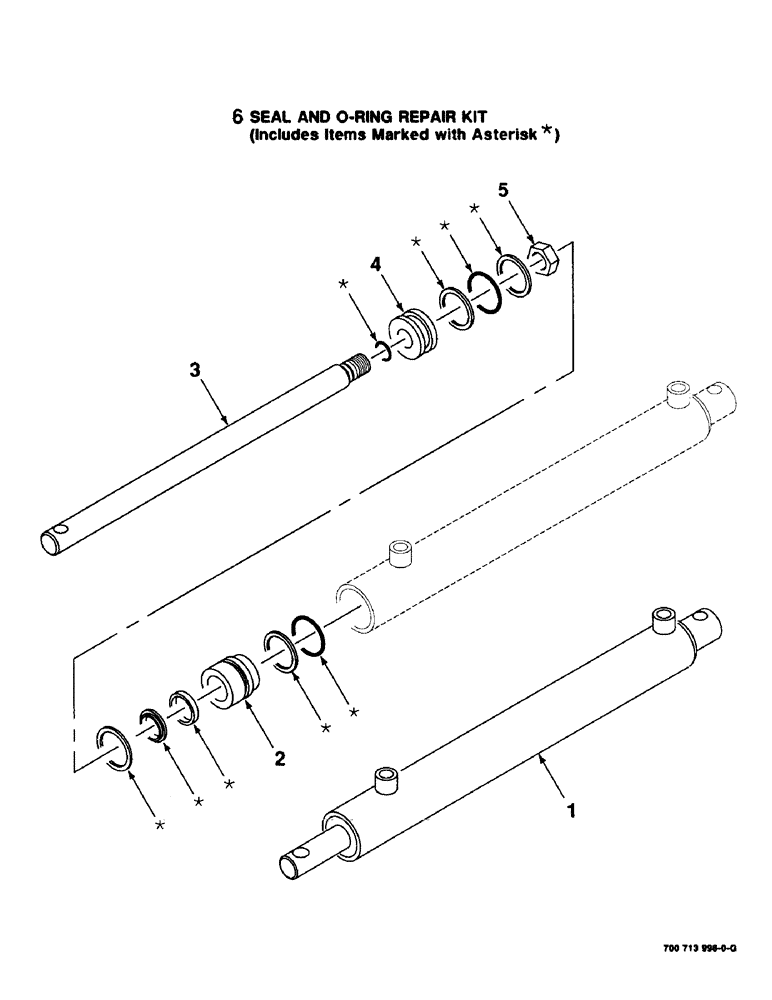

Запчасти Case IH 8575 (8-16) - HYDRAULIC CYLINDER ASSEMBLY, BALE EJECTOR, 700713998 HYDRAULIC CYLINDER ASSEMBLY COMPLETE (07) - HYDRAULICS

1

700713998

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-1/2 INCH BORE X 20 INCH STROKE)

1шт.

2

700714384

GUIDE

-ROD

1шт.

3

700714383

ROD

1шт.

4

700710421

PISTON

1шт.

5

774315

NUT

7/8-14 HEX NUT

1шт.

6

700714382

KIT

AND O-RING REPAIR KIT, Includes items in art marked with Asterisk

1шт.
