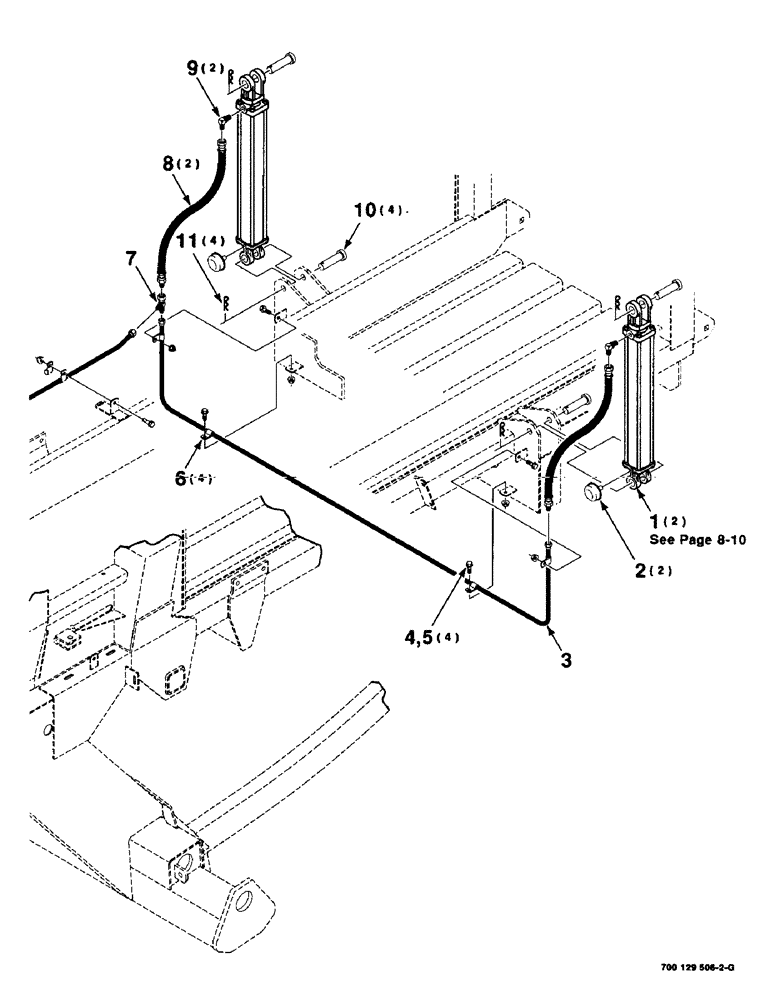

Запчасти Case IH 8575 (8-08) - HYDRAULIC BALE DENSITY ASSEMBLY (07) - HYDRAULICS

1

700711512

CYLINDER

HYDRAULIC CYLINDER ASSEMBLY (Includes Ref: 10 and 11)

2шт.

2

8799280

FILTER

2шт.

3

700713988

TUBE

LINE-HYDRAULIC

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

5

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 CLAMP

4шт.

7

700701355

3 WAY CONNECTION

TEE

1шт.

8

700710059

HYDRAULIC HOSE,6.35 mm ID x 530.00 mm, SAE 100R7

6.35 mm ID x 530.00 mm, SAE 100R7

2шт.

9

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

2шт.

10

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

1 X 3-1/2 CLEVIS PIN

4шт.

11

S120261

PIN

.148 WIRE HAIR PIN COTTER

4шт.
